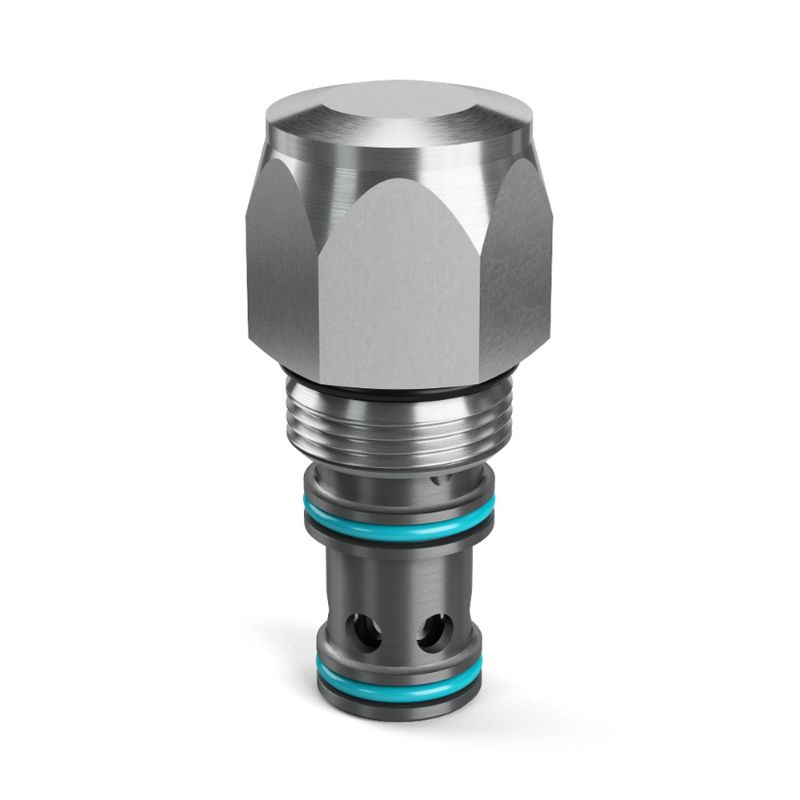

Parker 16SLC2-A-150 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16SLC2-A-150

$97.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	0.33 kg
Flow Rate	n/a	Maximum Operating Temperature	107 °C
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Vented	Internal	Division	Hydraulic Systems Division
Function	Logic Valve	Leak Rate	82
Configuration	Normally Closed (NC)	Seal Material	Polyurethane EPS
Actuation Type	Pilot to Close	Flow Direction	Nose to Side (1-2)
For Fluid Type	Mineral-based Hydraulic Fluids	Operation Type	Pilot Operated
Pilot Location	External	Valve Material	Steel
Switching Pressure	10.3 bar	Operating Temperature	-37 to 107 °C
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	240 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Minimum Operating Temperature	-35 °F	Dampening Orifice Included	No
Cavity Size	C16-3S	Maximum Flow Rate	50 Gal/min
Installation Torque	54 Nm	Configuration	Normally Closed
Seal Material	Polyurethane EPS	Switching Pressure	150 PSI, 10.3 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN
