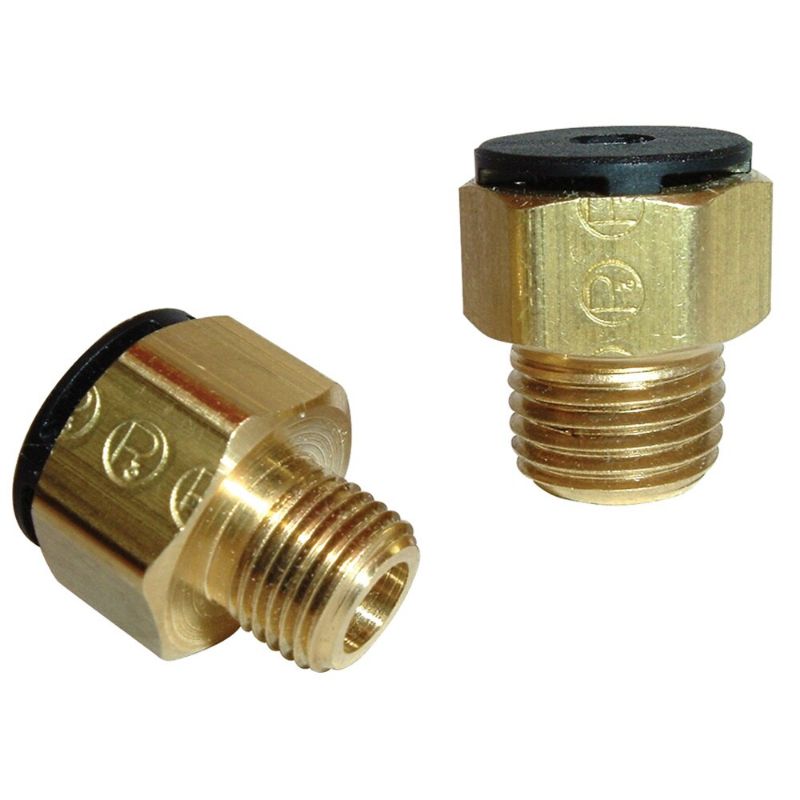

Parker E90017 - Exhaust Protector - E9 Series

Name: Parker E90017 - Exhaust Protector - E9 Series
SKU: E90017
Price: 11.70 USD
Availability: InStock

E9 protectors are intended for mobile or quick venting applications, and breathers that require protection against clogging. They are ideal for valves in harsh conditions and time sensitive applications, such as lift-axles, pushers or tag axles.

AFP Availability:

10 In Stock

Mooresville, NC

Partner Available:

789 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. E90017

$11.70/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	0 to 10.3 bar	Maximum Operating Pressure	6.89 bar
Division	Pneumatic Division	Body Material	Brass
Port Size	1/4"	Operating Temperature	-40° to +70° °C
Flow Rate	56.5, 62.7 (at 90 psi or 6.2 bar) SCFM	Port Size (inch)	1/4

Product resources

Literature and Reference Materials

MRO Pneumatic Airline Accessories Catalog (PDF)
