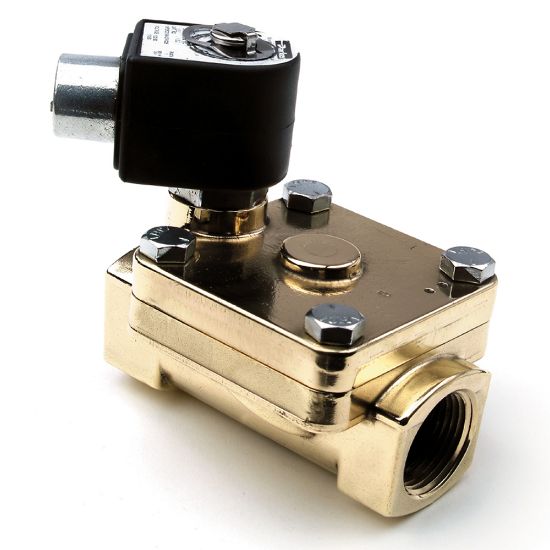

Parker 16F25CL364A3F4C80 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 16F25CL364A3F4C80

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Lead-Free Brass	Division	Fluid Control Division
Media	Hot Water	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	1.0
Port Type	NPT	Installation	IOM 7320
Orifice Size	1.0	Input Voltage	24
Seal Material	EPDM	Actuation Type	Internal Pilot
Power Consumption	11.5	Specifications Met	UL
Main Flow Coefficient	12.2	Ingress Protection Rating	NEMA 4X
Maximum Fluid Temperature	180	Preventive Maintenance Kit	16F25CL364A3FR
Maximum Ambient Temperature	77	Maximum Pressure Differential	275.0
Minimum Pressure Differential	1.0	Valve Type	2-Way
Maximum Steam Pressure	-	Body Material	Lead-Free Brass
Valve Type	2 Way	Seal Material	EPDM
Media	Water, Hot Water	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	1.0
Port Type	NPT	Installation	IOM 7320
Orifice Size	1.0	Input Voltage	24.0
Actuation Type	Internally Piloted	Power Consumption	11.5
Specifications Met	UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC	Main Flow Coefficient	12.2
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	180.0
Preventive Maintenance Kit	16F25CL364A3FR	Maximum Ambient Temperature	77.0
Maximum Pressure Differential	275.0	Minimum Pressure Differential	1.0
Maximum Steam Pressure	-
