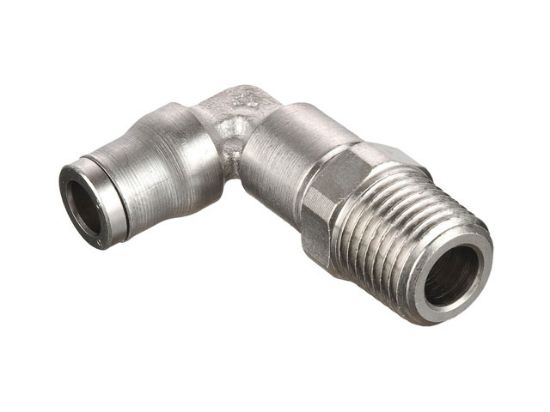

Parker 169PLSX-4M-2 - Prestolok PLS Series 169PLSX - Metric-Inch

Metric-Inch Male Elbow Extended 90° - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 169PLSX-4M-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outer Diameter 1	4 mm	Thread 1	1/8 NPT
UOM	EA	Parker Group	Fluid Connector
Outer Diameter 1 Inch/mm	mm	Inch/Metric	Metric-Inch
Operating Temperature	-4˚ to +302˚F	Outer Diameter 1	4 mm
Series	Prestolok PLS	Material - Seal	FKM Fluoroelastomer
Trade Name	Prestolok	Thread 1 Type	NPT
Configuration Type	Tube to Male	Material	Stainless Steel
Pressure Range	7 to 290 psi	Thread 1	1/8 NPT
Configuration Sub-Type	Male Elbow Extended 90°	Parker Division	Fluid Systems Connector (Brass Products)
