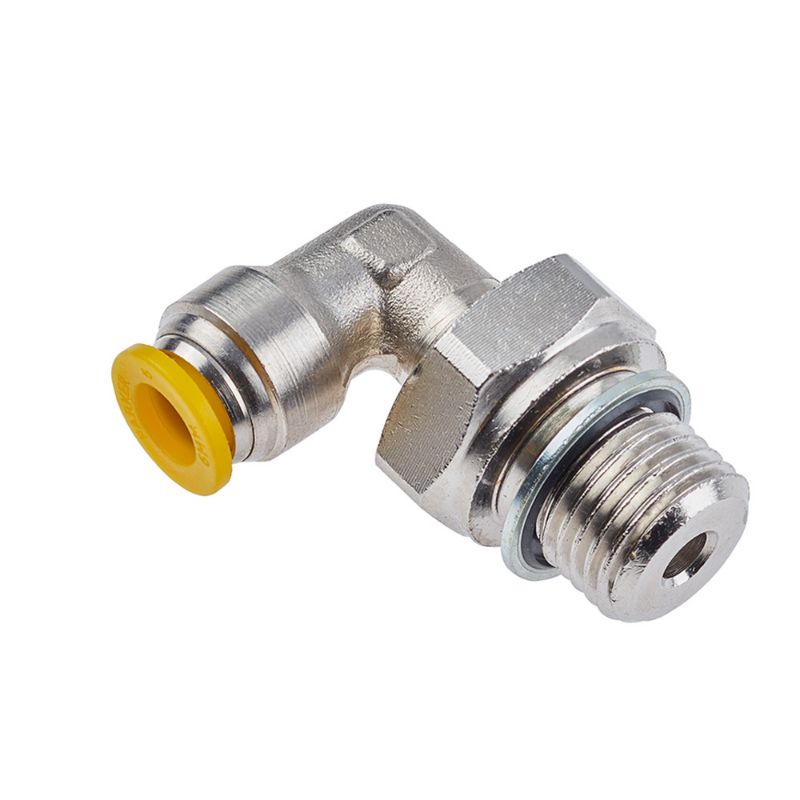

Parker 169PLP-10M-4G - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 169PLP-10M-4G

$11.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Automotive
Minimum Operating Temperature	-17.7 °C	Tube Material	Rigid Nylon
Specifications Met	UL 94 V-0	Seal Material	Nitrile
Gripping Ring Material	Stainless Steel	Brand	Parker
Industry	Material Handling	Maximum Operating Pressure	20.6 bar
Materials of Construction	PVDF (Button)	Vacuum Pressure Rating	28 Inch-Hg
For Fluid Type	Air	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Maximum Operating Temperature	93.3 °C
Region of Origin	United States	Hex Size	3/4 inch
Division	Fluid System Connectors Division	Body Material	Brass, Nickel-plated
Connection 2 Size	1/4"	Connection 1 Size	10 mm
Connection 1 Type	Push-to-Connect	Configuration	Tube to Pipe
Connection 2 Type	Male BSPP	Shape	Elbow 90° - Swivel
