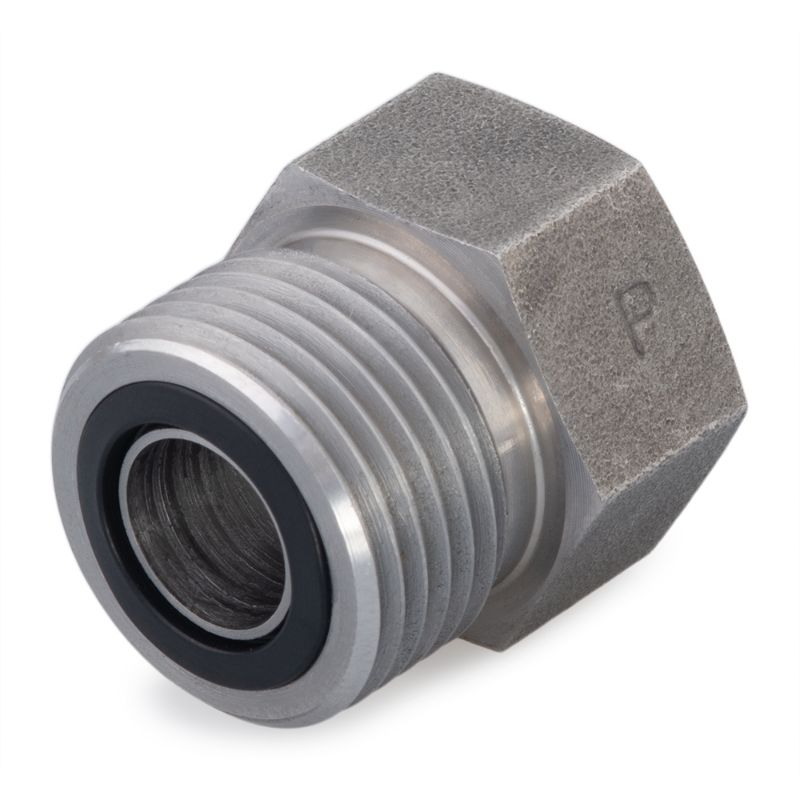

Parker 10 LOHB3-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. 10 LOHB3-S

$10.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Male O-Ring Face Seal
Specifications Met	SAE J1453	Connection 2 Tube Outside Diameter	5/8 inch
Connection 2 Thread Size	na	Shape	Straight
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Connection 3 Type	na	Maximum Dynamic Pressure	6000 psi
O-Ring Material	90 Durometer Nitrile	Connection Type	O-ring Face Seal
Division	Tube Fittings Division	Connection 4 Type	na
Dimensional Weight	0.031160071942446042 lb	Body Material	Steel
Connection 2 Type	Female Braze Socket	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
