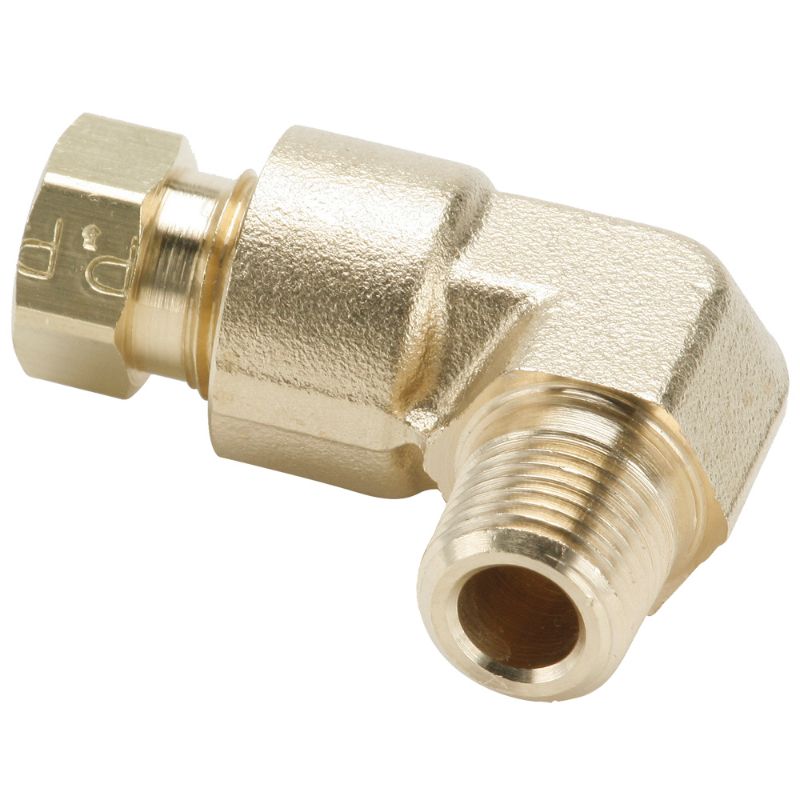

Parker 169HD-5-2 - Brass flareless tube fitting, Hi-Duty

Parker's Hi-Duty fitting is a preassembled brass fitting fitting with a sleeve machined onto the nut. This unique design creates tight joints that withstand pressures of most commomly used types of tubing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 169HD-5-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	121 °C	Nut Material	Brass
Application	Tube Assemblies, Engine, Compressors	Minimum Operating Temperature	-54 °C
Tube Material	Tube Assemblies, Engine, Compressors	Sleeve Material	Brass
Maximum Operating Pressure	124 bar	Shape	90° Elbow
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	5/16
Style	Tube to Pipe	Connection 2 Style	Male Pipe
