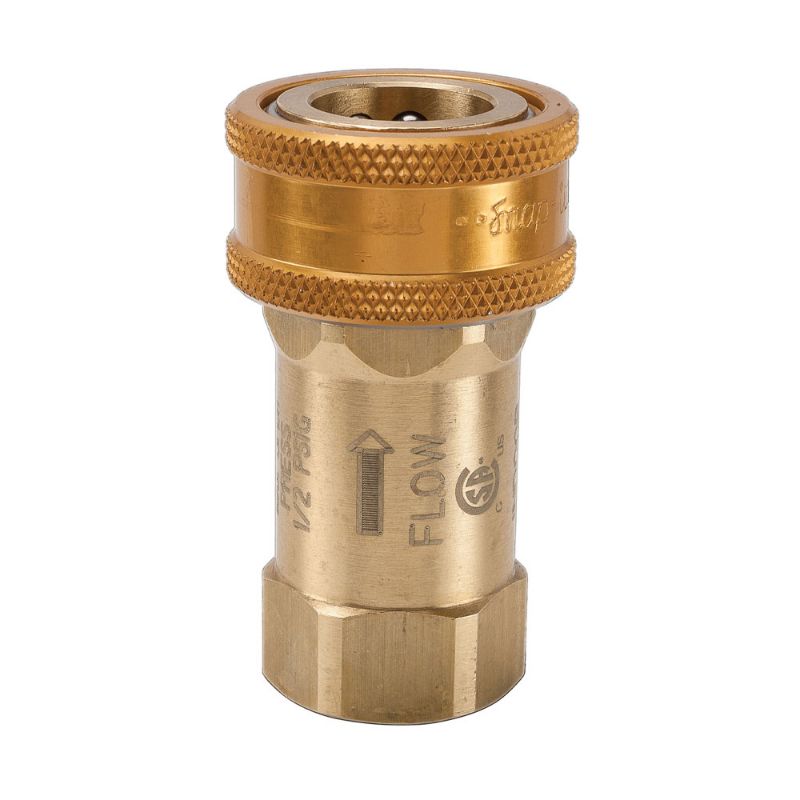

Parker HP-1001-16FB - High Flow, Valved, Hydraulic Quick Couplings - HP Series

Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HP-1001-16FB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hex Size	1.62	Minimum Operating Temperature	-40
Valve Type	Poppet	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate	Flow Rate	50
Body Material	Steel	Division	Quick Coupling Division
Maximum Operating Pressure	5000	Application	High Pressure Hydraulics
Maximum Operating Temperature	250	Connection Thread Size (inch)	1 - 11 1/2
Coupling Half	Female Coupler	Body Size	1
Connection Type	Female BSPP

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
