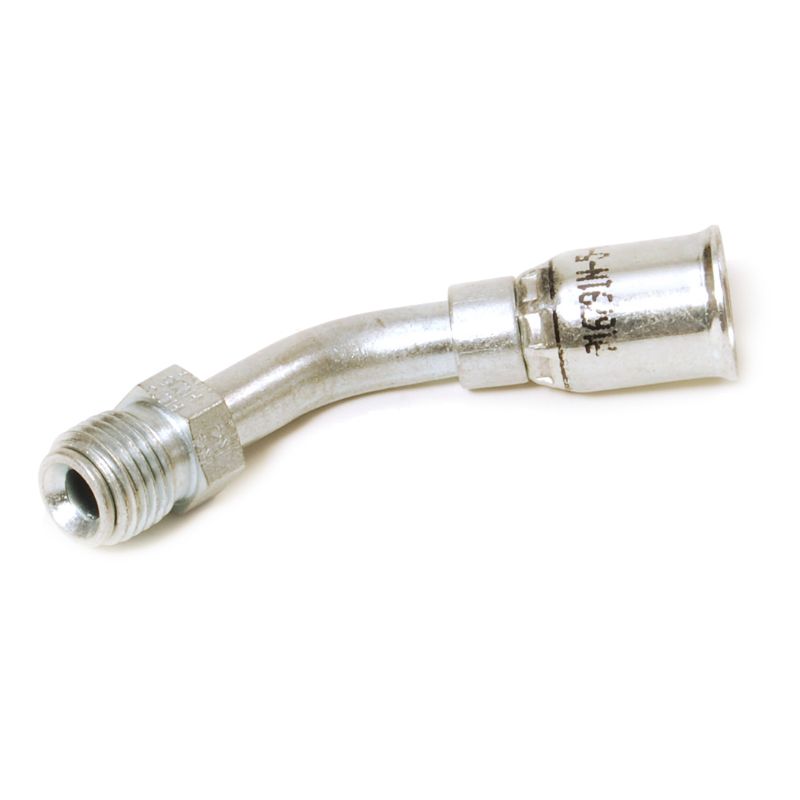

Parker 16791N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 16791N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 16791N-10-10
Price: 75.56 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

1 Limited Stock

Ashland, VA

1 (Pickup only)

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 16791N-10-10

$75.56/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Connection 1 Size	-10 (Size)	Body Material	Steel
Hex Size	n/a	Connection 2 Type	Inverted
Coating	Chromium 6 Free-plated	Connection Length	2-5/8 inch Cut-off allowance (see drawing legend B)
Shape	Elbow 45°	Division	Parflex Division
Hex Size 1	7/8 inch (see drawing legend H)	Application	Semiconductor
Specifications Met	n/a	Product Type	Hose Fittings
Tube Outside Diameter	n/a	Connection 1 Type	Hose
Industry	Transportation	Maximum Operating Pressure	3000 psi (Dependent on hose)
Brand	Parker	Connection 2 Size	7/8"-18 inch Thread
Fitting Length	3.30 inch (see drawing legend A)	Configuration	Hose to Port
Product Series	91N	Division	Parflex Division
Dimensional Weight	0.0529	For Fluid Type	Hydraulic Fluids
Hose I.D. (inch)	0.5"	Connection 2 Size	7/8"-18
Product Style	Male Inverted SAE 45° - Swivel - 45° Elbow	Length (inch)	3.3"
