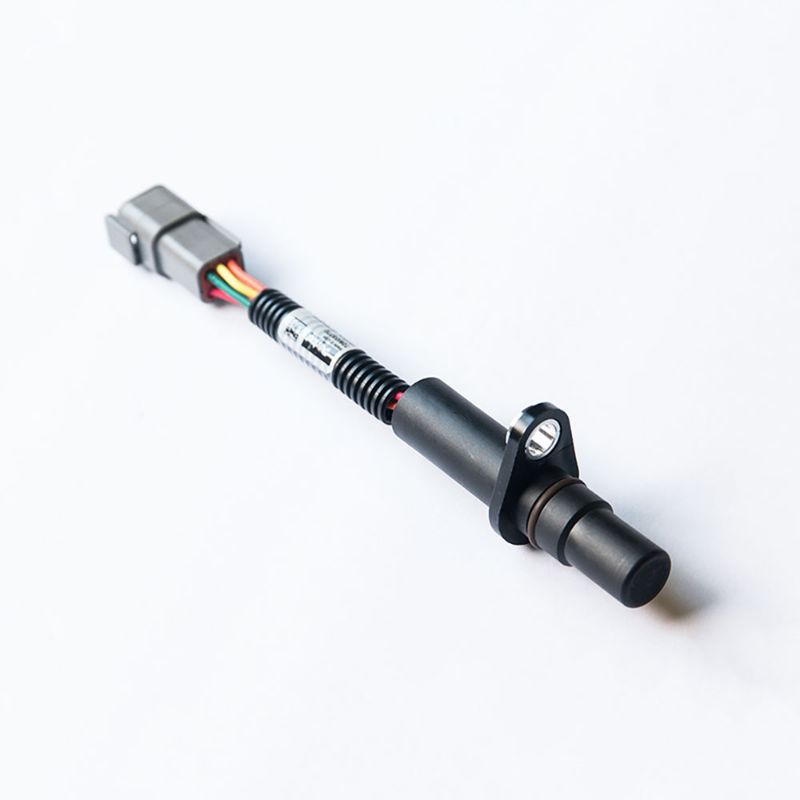

Parker 167758ECD - Gear Speed Sensor - GS

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 167758ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Housing Material	Glass-filled Nylon
Industry	Agriculture	Minimum Operating Temperature	-40
Maximum Operating Temperature	85	Sensor Type	Speed
Ingress Protection Rating	IP67	Weight	0.1
Electrical Connection	DTM04-6P	Application	Engine/Transmission Speed and Direction
O-Ring Material	AS-568A-114 or equal	Mounting Type	M8 Flange
Operating Current	34	Power Supply Voltage	8 to 16
Air Gap	1.02 to 2.03	Frequency	0 to 5
Output Type	j1939 CAN	Signal Output	j1939 CAN
Model Number	GS100
