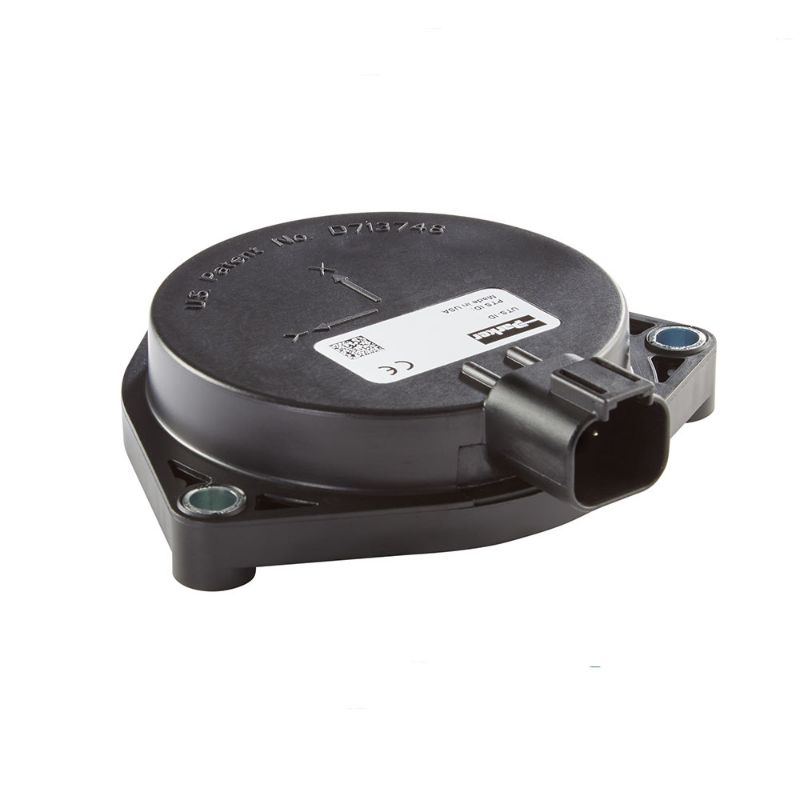

Parker 167427ECD - Universal Tilt Sensor - UTS-ID

Parker's UTS-ID Universal Tilt Sensor for Impact Detection communicates impact events and acceleration signals of impact magnitude and acceleration orientation information using SAE J1939 CAN bus protocol.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 167427ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Electrical Connection	DT04-4P
Minimum Operating Temperature	-40	Maximum Operating Temperature	85
Sensor Type	Impact	Mounting Type	Tripod
Number of Axes	3	Operating Angle	±2000 dps
Housing Material	Glass-filled PC/PET	Operating Current	9.0 mA @12VDC
Maximum Impact Rate	±16	Power Supply Voltage	5.25 to 48
Mounting Hole Diameter	0.25 inch (x3)	Ingress Protection Rating	68
Maximum Storage Temperature	85	Minimum Storage Temperature	-40
