*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

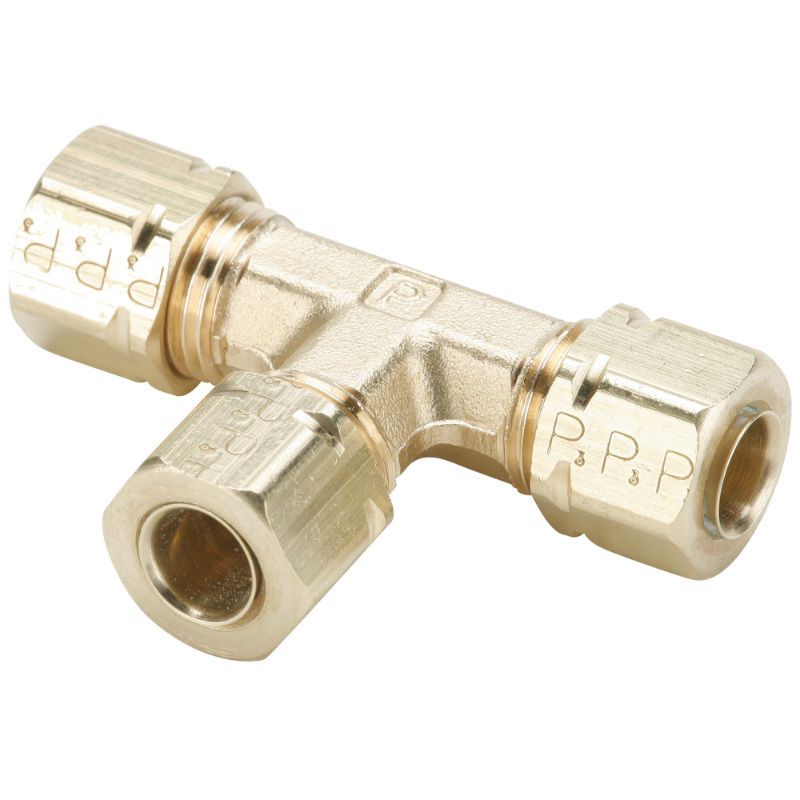

Parker 164CA-6-6-4 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 164CA-6-6-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
Connection Type	NPTF	Dimensional Weight	0.2759 lb
Maximum Operating Pressure	193 bar	Nut Material	Brass
Media	Water, air, inert and non-combustible gasses	Application	Compressors, Machine Tools, Dispensing, Pumps, Purification
Minimum Operating Temperature	-54 °C	Tube Material	Copper, Aluminum, TFE, FEA, PFA, Thermoplastic
Sleeve Material	Brass	Body Material	Brass
Shape	Tee	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 2 Type	Compression	Connection 3 Type	Compression
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Connection 2 Tube Outside Diameter	3/8" (O.D.)
Connection 3 Tube Outside Diameter	1/4" (O.D.)

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
