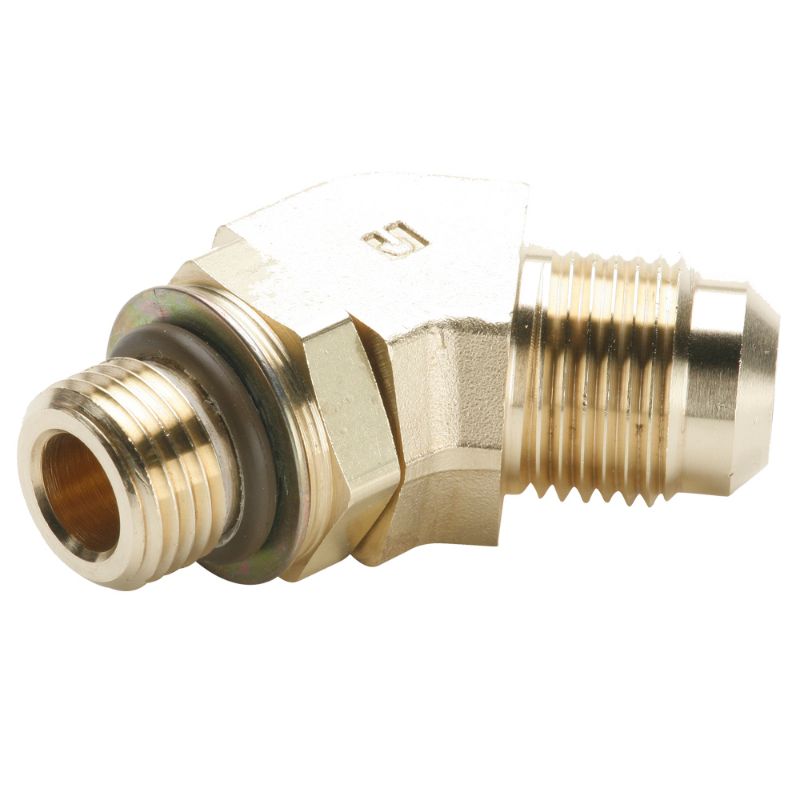

Parker 159F-10-MI27 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 159F-10-MI27

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	Brass
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Dimensional Weight	0.27594424460431655 lb	Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing
Specifications Met	ISO 6149-3, SAE 2244-3	Maximum Operating Pressure	650 psi
Minimum Operating Pressure	-53 psi	Shape	45° Elbow
Connection 1 Tube O.D. (inch)	5/8	Style	Flare to Metric
Connection 1 Style	Male Flare	Connection 2 Thread Size (inch)	M27x2.0

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
