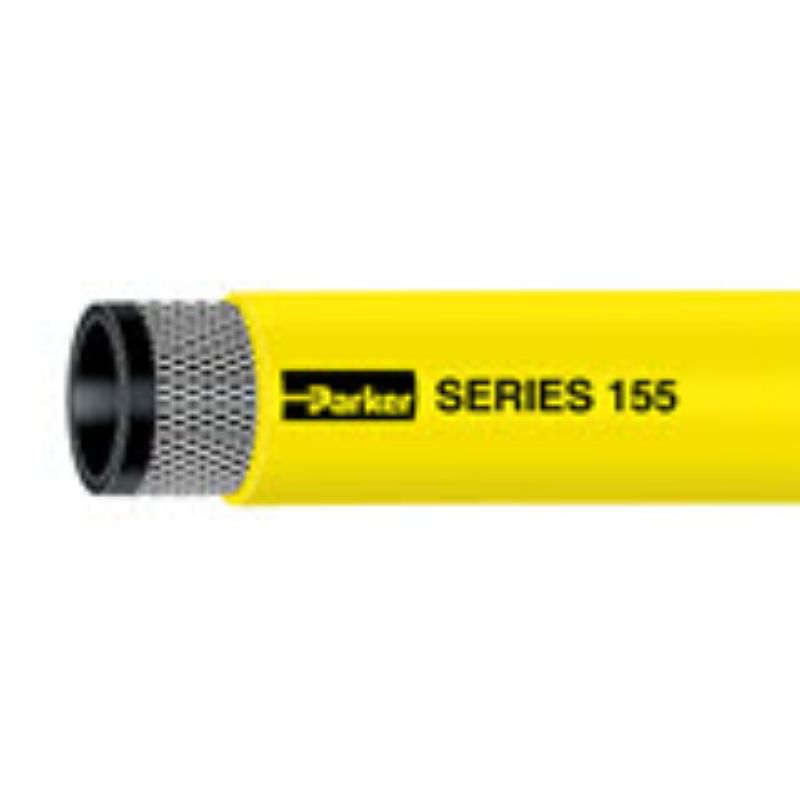

Parker 155-16002301 - NEXTRILE Premium PVC General Purpose Hose, Series 155

Nextrile PVC low temperature, nonconductive, general purpose hose is designed for transfer of air, diluted chemicals and water in applications from -22°F to 150°F and 300 psi, Series 155

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 155-16002301

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Hose Products Division
Maximum Operating Temperature	150	Inside Diameter	1
Application	PVC Hose	Cover Material	PVC
Cover Structure	Smooth	Length per Package	300
Minimum Bend Radius	n/a	Hose Reinforcement Material	2 Plies of Textile
Maximum Operating Pressure	200	Package Type	Reel
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Minimum Operating Temperature	-22	Weight	0.36
Outside Diameter	1.350	Color	Yellow
Hose I.D. (inch)	1

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
