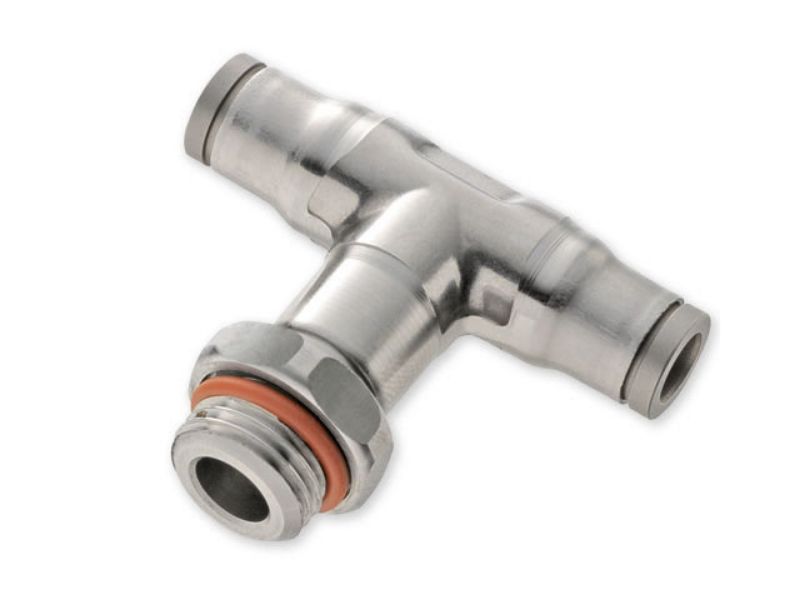

Parker 172PLS-6M-2 - Prestolok PLS Series 172PLS - Metric-Inch

Metric-Inch Male Branch Tee Swivel - Push-to-Connect Fitting

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 172PLS-6M-2

Products specifications

Attribute name	Attribute value
Thread 1	1/8 NPT	UOM	EA
Outer Diameter 1	6 mm	Parker Group	Fluid Connector
Thread 1	1/8 NPT	Parker Division	Fluid Systems Connector (Brass Products)
Series	Prestolok PLS	Outer Diameter 1	6 mm
Inch/Metric	Metric-Inch	Operating Temperature	-4˚ to +302˚F
Outer Diameter 1 Inch/mm	mm	Trade Name	Prestolok
Material - Seal	FKM Fluoroelastomer	Thread 1 Type	NPT
Pressure Range	7 to 290 psi	Configuration Sub-Type	Male Branch Tee Swivel
Configuration Type	Tube to Male	Material	Stainless Steel

Product resources

General Technical (PDF)
Prestolok Fittings (PDF)
