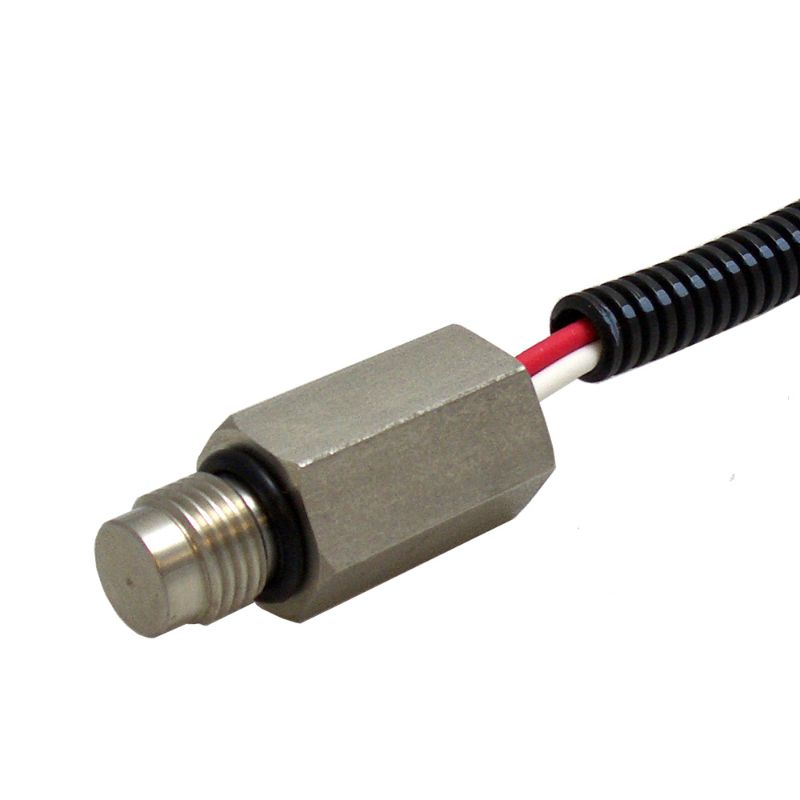

Parker 154877ECD - Gear Speed Sensor - GS

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 154877ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Ingress Protection Rating	67
Minimum Operating Temperature	-40	Maximum Operating Temperature	85
Sensor Type	Speed	Housing Material	Stainless Steel
Signal Output	Open Collector	Operating Current	13.5 mA max.
Industry	Construction	Power Supply Voltage	5 to 27
Electrical Connection	DT04	Output Current Rating	30
Mounting Type	ISO 6149-1 M14x1.5	Air Gap	0 to 3
Frequency	0 to 15	Output Type	Analog
Model Number	GS70
