Parker G01315Q - Replacement Elements - 22PD-32PD Series

The replacement elements of the Parker 22PD-32PD high pressure duplex filter series make use of high quality Microglass glasfibre filter materials.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. G01315Q

$253.95

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Pressure Differential	20 bar (ISO 2941)
Filter Element Type	Disposable element	Division	Hydraulic & Industrial Process Filtration Division EMEA
Diameter	62 mm	Filter Element Type	10Q Microglass
Size	Length 2	Seal Material	Nitrile
Micron Rating	10 µm	For Use With	22PD Housing
Length	246 mm	UOM	EA
Seals	NBR: Nitrile	Collapse Pressure (psi)	290 psi
Pkg Qty	1	Media	10 Micron Absolute
Media Type	Microglass	Collapse Pressure (bar)	20 bar

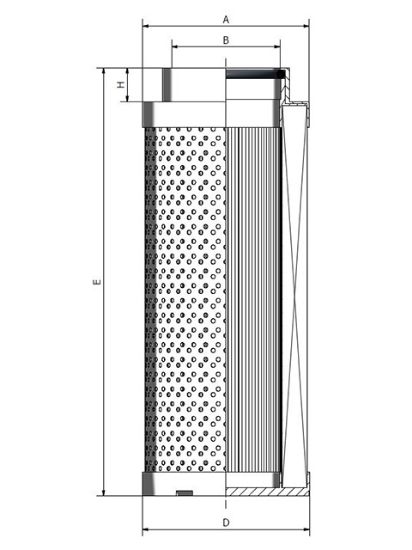

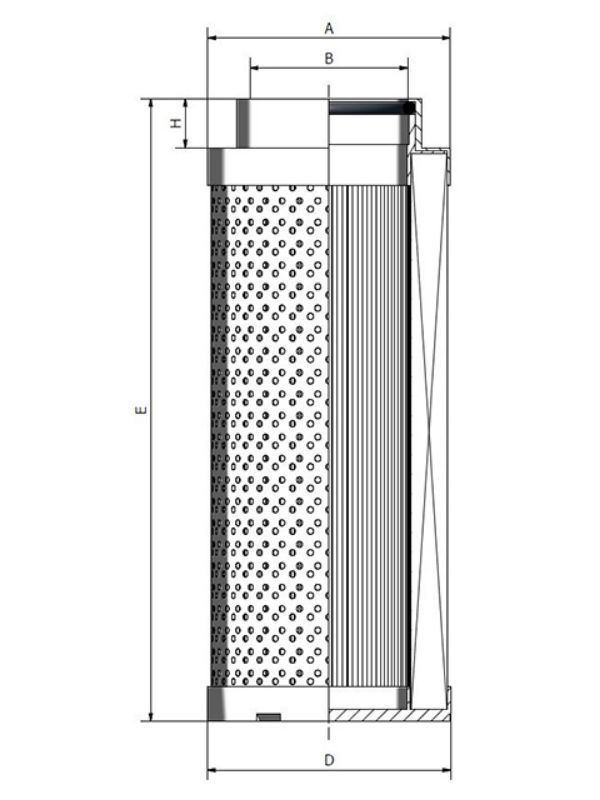

Efficiency βx(C) ≥ 200	10 µ	A Dimension	2.441 in (62 mm)
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Media	10 Micron Absolute
Bottom Endcap Material	Mild steel tin plated	E Dimension	9.705 in (246.5 mm)
Top Endcap Material	Glass reinforced nylon	Collapse Pressure (bar)	20 bar
Efficiency βx(C) ≥ 200	10 µ	B Dimension	1.417 in (36 mm)
D Dimension	2.441 in (62 mm)	Parker Group	Filtration
Glue Side Seam Adhesive	Epoxy	Inner Support Cylinder Material	Mild steel tin plated
Parker Division	Hydraulic Filter	Seals	NBR: Nitrile
Media Type	Microglass	Series	ParFit
Collapse Pressure (psi)	290 psi	Glue Endcaps Adhesive	Epoxy
I Dimension	0.039 in (1 mm)
