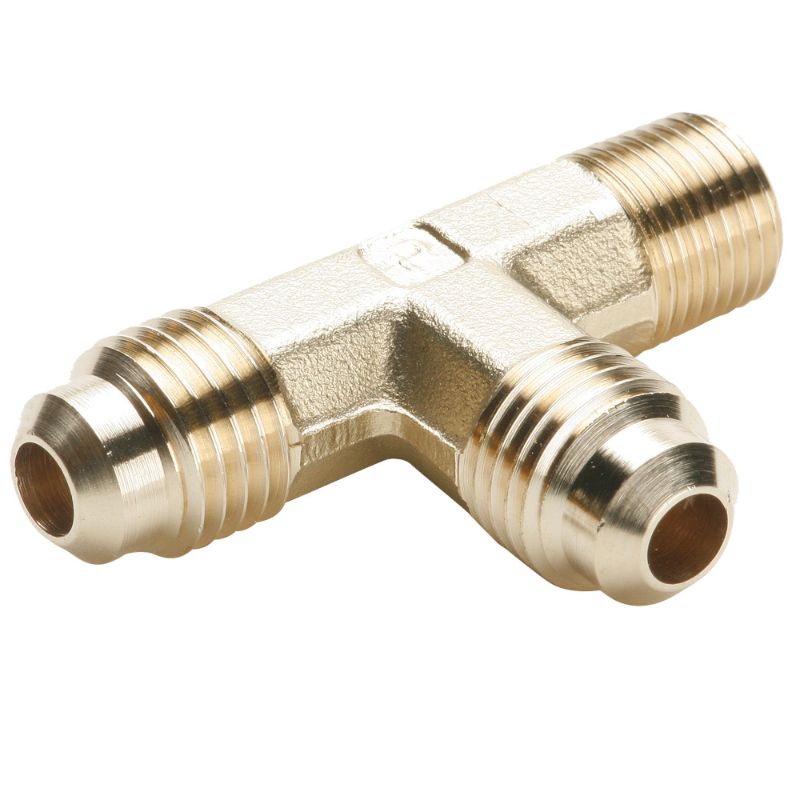

Parker 151F-6-4 - Brass 45° Flare Fittings

Name: Parker 151F-6-4 - Brass 45° Flare Fittings
SKU: 151F-6-4
Price: 23.60 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:

5 In Stock

Norfolk, VA	4
Jacksonville, FL	1

Partner Available:

169 In Stock

Brand Parker

Part No. 151F-6-4

$23.60

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	O-Ring Material	Fluorocarbon
Minimum Operating Temperature	-65 °F	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	68.9 bar
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Shape	Run Tee
Connection 2 Type	Male Pipe	Connection 1 Type	Flare
Connection 3 Type	Flare	Connection 1 Thread Size	5/8-18 inch
Connection 3 Thread Size	5/8-18 inch	Connection 1 Tube Outside Diameter	3/8 inch
Connection 3 Tube Outside Diameter	3/8 inch	Product Style	Flare to Pipe
Connection 2 Thread Size	1/4 inch	Connection 2 Tube Outside Diameter	NA
