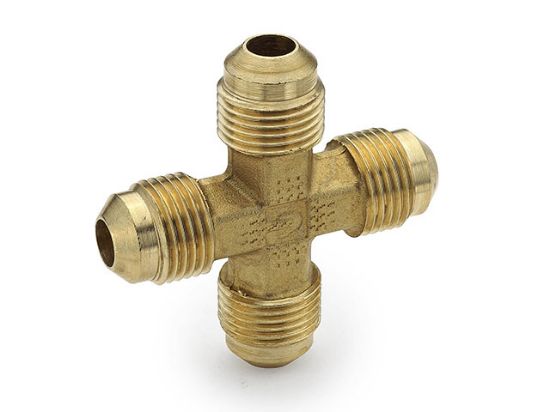

Parker 147F-6 - Cross 147F

Parker 45° Flare Brass Cross - Ref. SAE J512 and J513 010501

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 147F-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Brass
Pkg Qty	10	Outer Diameter 1	3/8 Inch
Thread 1	5/8-18 UN/UNF	Thread 2	5/8-18 UN/UNF
Outer Diameter 2	3/8 Inch	Outer Diameter 3	3/8 Inch
Outer Diameter 4	3/8 Inch	Thread 3	5/8-18 UN/UNF
Thread 4	5/8-18 UN/UNF	Parker Group	Fluid Connector
Inch/Metric	Inch	Material	Brass
Parker Division	Fluid Systems Connector (Brass Products)	Outer Diameter 1 Inch/mm	Inch
Configuration Type	Flare to Flare	Series	45° Flare
Thread 1	5/8-18 UN/UNF	Thread 1 Type	UN/UNF
Operating Temperature	-65°F to +250°F	Thread 2	5/8-18 UN/UNF
Thread 2 Type	UN/UNF	Configuration Sub-Type	Cross
Outer Diameter 1	3/8 Inch	Outer Diameter 2	3/8 Inch
Outer Diameter 2 Inch/mm	Inch	Outer Diameter 3	3/8 Inch
Outer Diameter 3 Inch/mm	Inch	Pressure Rating	1000 PSI
Outer Diameter 4	3/8 Inch	Outer Diameter 4 Inch/mm	Inch
Thread 3	5/8-18 UN/UNF	Thread 3 Type	UN/UNF
Thread 4	5/8-18 UN/UNF	Thread 4 Type	UN/UNF
SAE Compliance	J512 and J513	SAE Reference	SAE 010501
Body Shape	Forged
