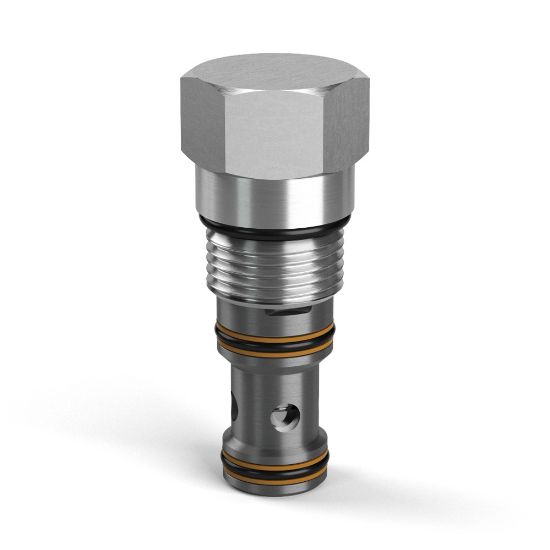

Parker R04F3-10.0V - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. R04F3-10.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	Normally Closed	Maximum Operating Temperature	+400 °F
Function	Logic Valve	Switching Pressure	10 bar
Maximum Flow Rate	45 Gal/min	Maximum Inlet Pressure Rating	420 bar
Leak Rate	50 @ 1450 PSI (BAR) cm3/min	Division	Mobile Hydraulic Systems Division Europe
Maximum Operating Pressure	420 bar	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Minimum Operating Temperature	-26 °C
Flow Direction	Nose to Side (1-2)	Flow Rate	100 @ 100 PSI (7 BAR) Nominal L/min
Pilot Location	Internal	Weight	0.14 kg
Body Material	n/a	Vented	Internal
Valve Material	All parts steel. All operating parts hardened steel	Division	Hydraulic Cartridge Systems Division
Dampening Orifice Included	Yes	Seal Material	Fluorocarbon
Operation Type	Pilot Operated	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Cavity Size	C10-3S	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Vent to Open	Installation Torque	37 lb-ft
Dampening Orifice Included	Yes	Configuration	Normally Closed
Maximum Flow Rate	45 GPM, 170 L/MIN	Flow Direction	Nose to Side (1-2)
Seal Material	Fluorocarbon	Switching Pressure	145 PSI, 10 BAR
