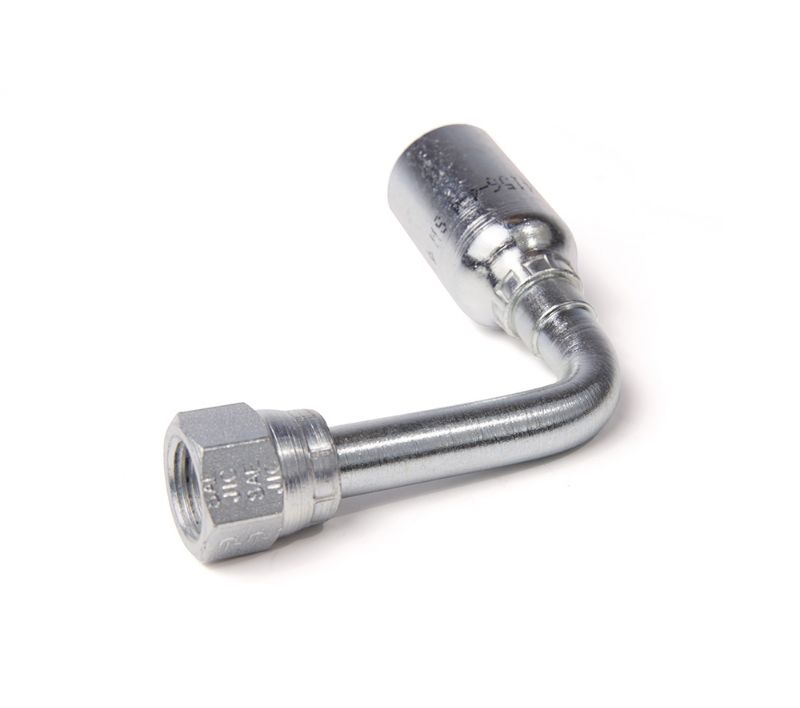

Picture of Parker 14156-4-3 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 14156-4-3 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Quote Required
Partner Available:5 In Stock
Brand Parker
Part No. 14156-4-3
$34.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABrandParker
DivisionParflex DivisionTechnologyFluid & Gas Handling
CoatingChromium 6 Free-platedDivisionParflex Division
Hex Sizen/aConfigurationHose to Port
For Fluid TypeHydraulic FluidsConnection 1 TypeHose
Tube Outside Diametern/aBody MaterialSteel
IndustryIndustrial Manufacturing EquipmentApplicationAgriculture Equipment
Maximum Operating Pressure5000 psi (Dependent on hose)Hex Size 2n/a
Connection 1 Size3/16 inch Hose I.D.Connection 2 TypeFemale
Connection 2 Size7/16"-20 inch ThreadConnection Length1-5/16 inch Cut-off allowance
Hex Size 19/16 inch (see drawing legend J)Shipping Weight0.046 kg
Fitting Length51 mm (see drawing legend A)ShapeElbow 90° Long Drop
Dimensional Weight0.0543 lbMaterials of ConstructionSteel
Hose I.D. (inch)0.188"Connection 2 Size7/16"-20
Length (inch)1.73"Product StyleFemale JIC 37° - Swivel - 90° Elbow - Long Drop
