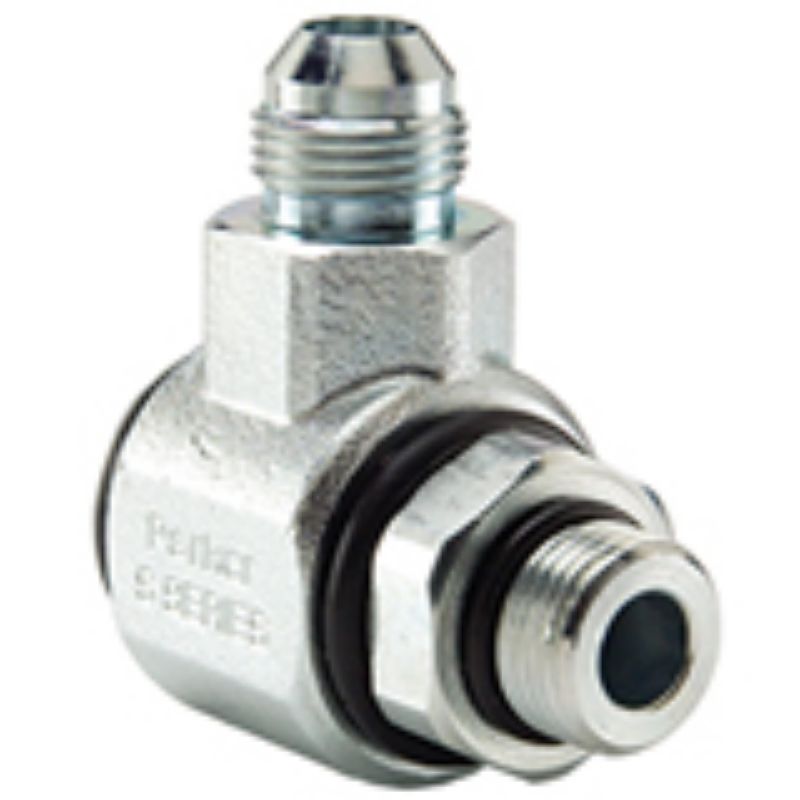

Parker S2503-10-10 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. S2503-10-10

$125.18

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Temperature	250 °F	Maximum Operating Speed	10 RPM
Dimensional Weight	0.12464028776978417 lb	Configuration	90 degree
Maximum Operating Pressure	3000 psi	Shaft Connection Style	Male SAE O-ring Straight Thread
Housing Connection Style	Male JIC 37 degree	Plating	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	7/8 - 14 UNF	Housing Connection Thread Size (inch)	7/8 - 14 UNF
Seal Material	Nitrile
