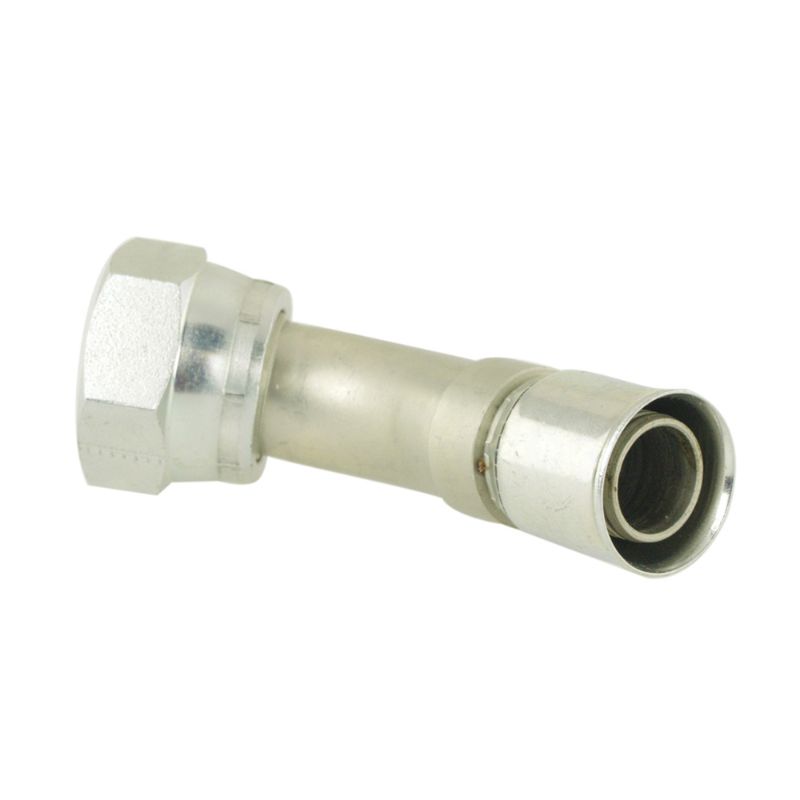

Parker 13991N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 13991N-10-10 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 13991N-10-10
Price: 36.08 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

48 In Stock

Richmond, VA	15
Sumter, SC	14
Fayetteville, NC	5
Ashland, VA	2 (Pickup only)
Norfolk, VA	2
Jacksonville, FL	2
Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
Knoxville, TN	2
Mooresville, NC	2

Partner Available:

178 In Stock

Brand Parker

Part No. 13991N-10-10

$36.08/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size	n/a	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Body Material	Steel	Application	Medical
Connection 1 Size	1/2 inch Hose I.D.	Product Series	91N
For Fluid Type	Chemicals	Dimensional Weight	0.0567 lb
Connection 2 Type	Female	Connection 2 Size	7/8"-14 inch Thread
Hex Size 1	1 inch (see drawing legend H)	Connection Length	1-9/16 inch Cut-off allowance (see drawing legend B)
Shape	Elbow 90° Short Drop	Fitting Length	2.27 inch (see drawing legend A)
Hose I.D. (inch)	0.5"	Connection 2 Size	7/8"-14
Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop	Length (inch)	2.27"
