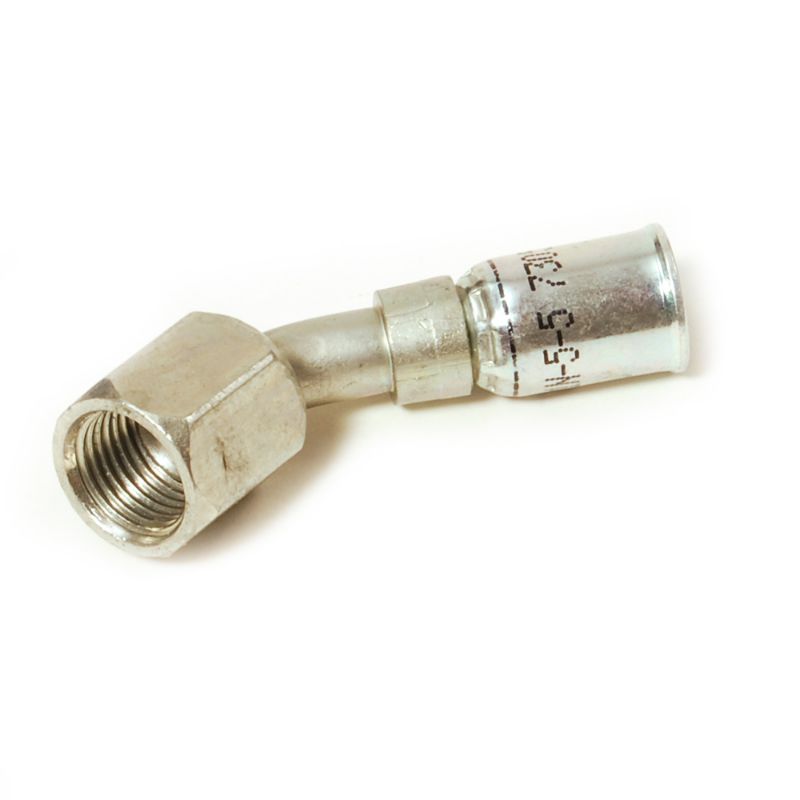

Picture of Parker 13791N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 13791N-10-10 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.
Availability:
Quote Required
Partner Available:116 In Stock
Brand Parker
Part No. 13791N-10-10
$40.78
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABrandParker
DivisionParflex DivisionTechnologyFluid & Gas Handling
Maximum Operating Pressure207 barApplicationSemiconductor
Specifications MetN/ACoatingChromium 6 Free-plated
DivisionParflex DivisionHex Sizen/a
Product TypeHose FittingsConfigurationHose to Port
Connection 1 TypeHoseTube Outside Diametern/a
Body MaterialSteelProduct Series91N
IndustrySemiconductorFitting Length2.42 inch (see drawing legend A)
For Fluid TypePharmaceutical FluidsConnection 1 Size12.7 mm
Dimensional Weight0.0504 lbConnection 2 TypeFemale
Connection 2 Size7/8"-14 inch ThreadHex Size 11 inch (see drawing legend H)
Connection Length43 mmShapeElbow 45° Short Drop
Hose I.D. (inch)0.5"Length (inch)2.42"
Connection 2 Size7/8"-14Product StyleFemale JIC 37° - Swivel - 45° Elbow - Short Drop
