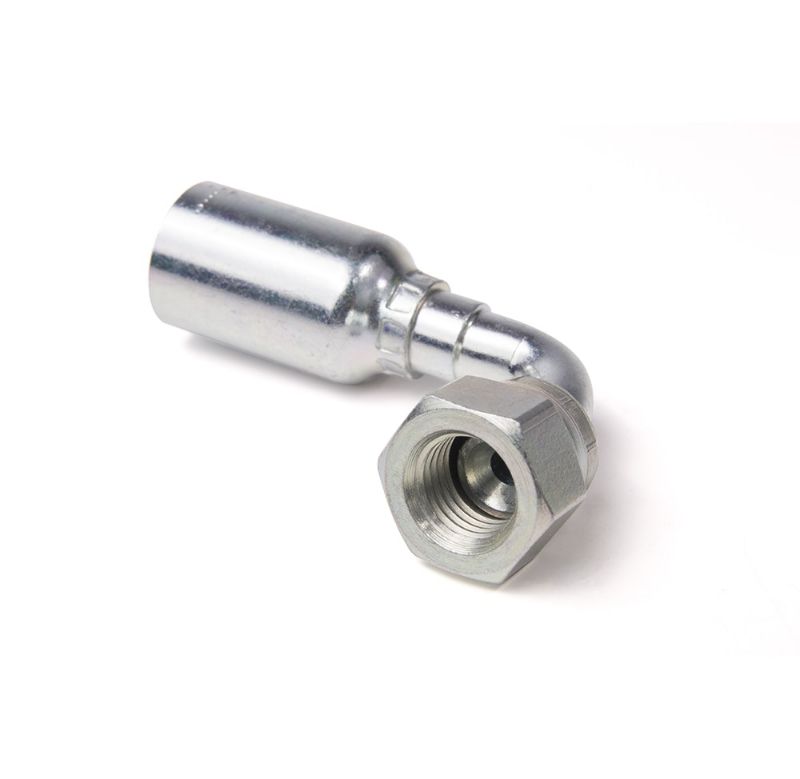

Picture of Parker 13956-10-8 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 13956-10-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Quote Required
Partner Available:70 In Stock
Brand Parker
Part No. 13956-10-8
$64.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABrandParker
DivisionParflex DivisionTechnologyFluid & Gas Handling
CoatingChromium 6 Free-platedDivisionParflex Division
Hex Sizen/aConfigurationHose to Port
Connection 1 TypeHoseTube Outside Diametern/a
Body MaterialSteelApplicationAgriculture Equipment
IndustryOff-road MachineryFor Fluid TypeAir (Pneumatic Media)
Maximum Operating Pressure5000 psi (Dependent on hose)Hex Size 2n/a
Connection 1 Size1/2 inch Hose I.D.Dimensional Weight0.1177 lb
Connection 2 TypeFemaleFitting Length2.60 inch (see drawing legend A)
Connection 2 Size7/8"-14 inch ThreadConnection Length38 mm Cut-off allowance
Hex Size 11 inch (see drawing legend J)ShapeElbow 90° Short Drop
Shipping Weight0.14 kgMaterials of ConstructionSteel
Hose I.D. (inch)0.5"Length (inch)2.6"
Connection 2 Size7/8"-14Product StyleFemale JIC 37° - Swivel - 90° Elbow - Short Drop
