*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

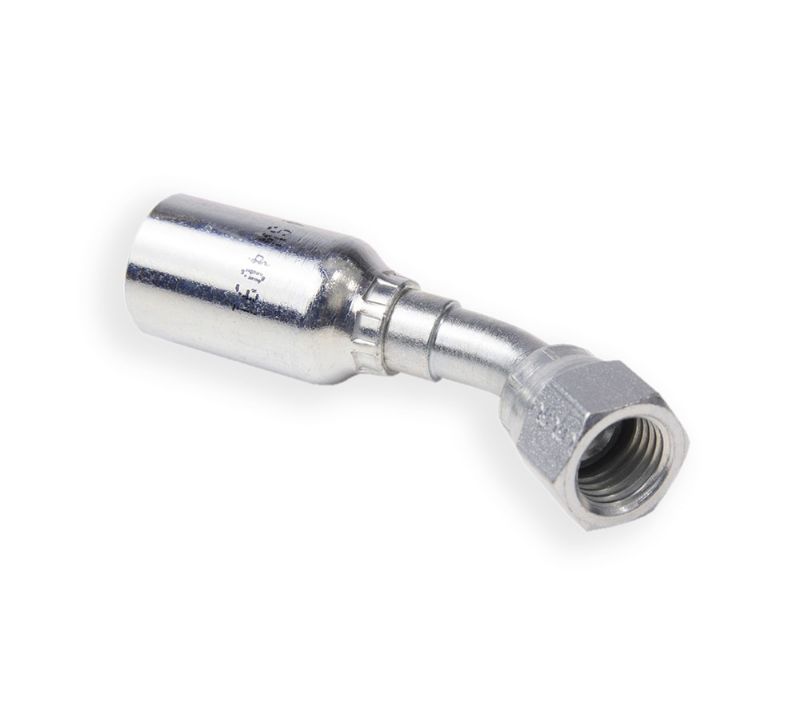

Parker 13756-6-6 - Global Fittings - 56 Series - Inch

Name: Parker 13756-6-6 - Global Fittings - 56 Series - Inch
SKU: 13756-6-6
Price: 31.86 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

89 In Stock

North Chesterfield, VA	41
Jacksonville, FL	20
Norfolk, VA	9
East Knoxville, TN	8
Ashland, VA	3 (Pickup only)
West Knoxville, TN	3
Johnson City, TN	2 (Pickup only)
Summerville, SC	2
Sumter, SC	1

Partner Available:

359 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 13756-6-6

$31.86/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection Length	40 mm Cut-off allowance
Coating	Chromium 6 Free-plated	Connection 1 Size	9.5 mm Hose I.D.
Hex Size	n/a	Body Material	Steel
Connection 2 Type	JIC 37°	Shipping Weight	0.143 lb
Application	Utility Equipment	Hex Size 2	n/a
Shape	Elbow 45° Short Drop	Division	Parflex Division
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hex Size 1	11/16 inch (see drawing legend J)	Industry	Transportation
Maximum Operating Pressure	5000 psi (Dependent on hose)	Brand	Parker
For Fluid Type	Air (Pneumatic Media)	Fitting Length	2.57 inch (see drawing legend A)
Connection 2 Size	9/16"-18 inch Thread	Configuration	Hose to Port
Dimensional Weight	0.0353 lb	Length (inch)	2.57"
Product Style	Female JIC 37° - Swivel - 45° Elbow - Short Drop	Hose I.D. (inch)	0.375"
Connection 2 Size	9/16"-18	Materials of Construction	Steel
