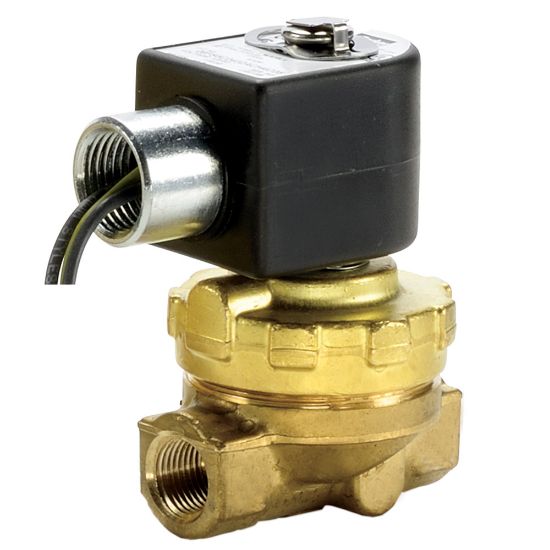

Parker 12F25CL348A3F4C80 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12F25CL348A3F4C80

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	3/4
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Seal Material	EPDM
Maximum Fluid Temperature	150	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Media	Hot Water	Installation	IOM 7320
Body Material	Lead-Free Brass	Input Voltage	24
Actuation Type	Internal Pilot	Power Consumption	11.5
Specifications Met	UL	Ingress Protection Rating	NEMA 4X
Maximum Ambient Temperature	77	Minimum Pressure Differential	1.0
Maximum Steam Pressure	-	Orifice Size	3/4
Main Flow Coefficient	7.4	Preventive Maintenance Kit	12F25CL348A3FR
Maximum Pressure Differential	70	Port Type	NPT
Seal Material	EPDM	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Function	Normally Closed	Input Voltage	24.0
Actuation Type	Internally Piloted	Power Consumption	11.5
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	150.0
Maximum Ambient Temperature	77.0	Media	Water, Hot Water
Installation	IOM 7320	Body Material	Lead-Free Brass
Specifications Met	UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC	Minimum Pressure Differential	1.0
Valve Type	2 Way	Maximum Steam Pressure	-
Port Size	3/4	Orifice Size	3/4
Main Flow Coefficient	7.4	Preventive Maintenance Kit	12F25CL348A3FR
Maximum Pressure Differential	70.0
