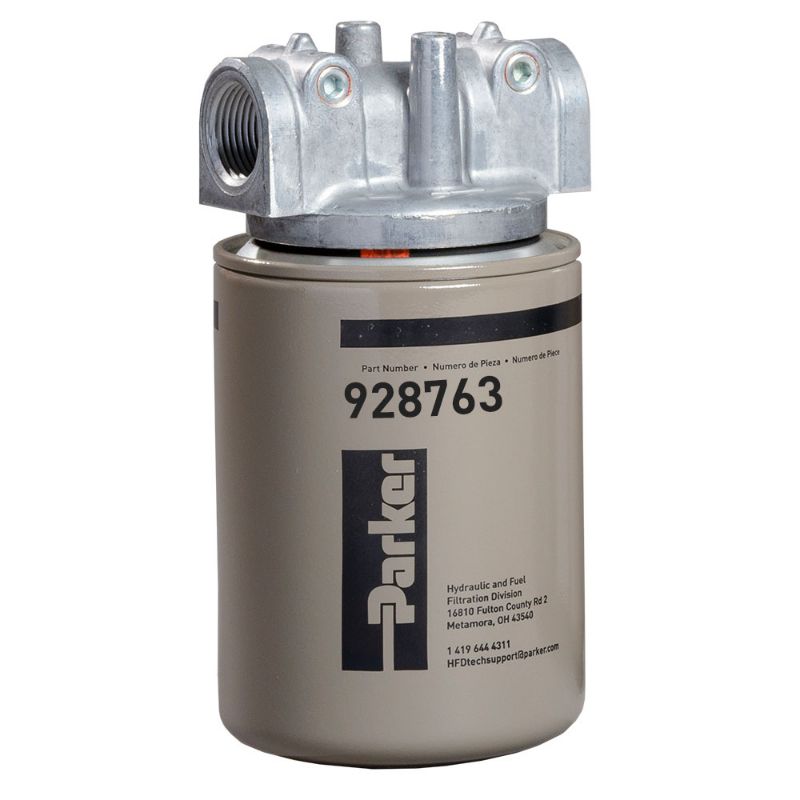

Parker 12AT110BBPGN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Name: Parker 12AT110BBPGN12H - Low Pressure Spin-On Filters 12AT/50AT Series
SKU: 12AT110BBPGN12H
Price: 83.04 USD
Availability: InStock

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:

8 In Stock

Jacksonville, FL	4
Mooresville, NC	4

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 12AT110BBPGN12H

$83.04/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	13
Housing Material	Low Carbon Steel	Port Type	3/4" NPT ports
Seal Material	Nitrile	Compatible Element	928763
Mounting Type	Inline	Indicator Type	Sold separately
Bypass Valve Pressure Rating	1.7 bar	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Pressure Rating	150	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	10 micron microglass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Indicator Pressure Setting	1.4	Maximum Operating Temperature	225
Weight	1.6	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron microglass
Flow Rate (gpm)	13	Indicator Type	Sold separately
Bypass Valve (psi)	25	Port Connection Type	3/4" NPT ports

Product resources

Literature and Reference Materials
