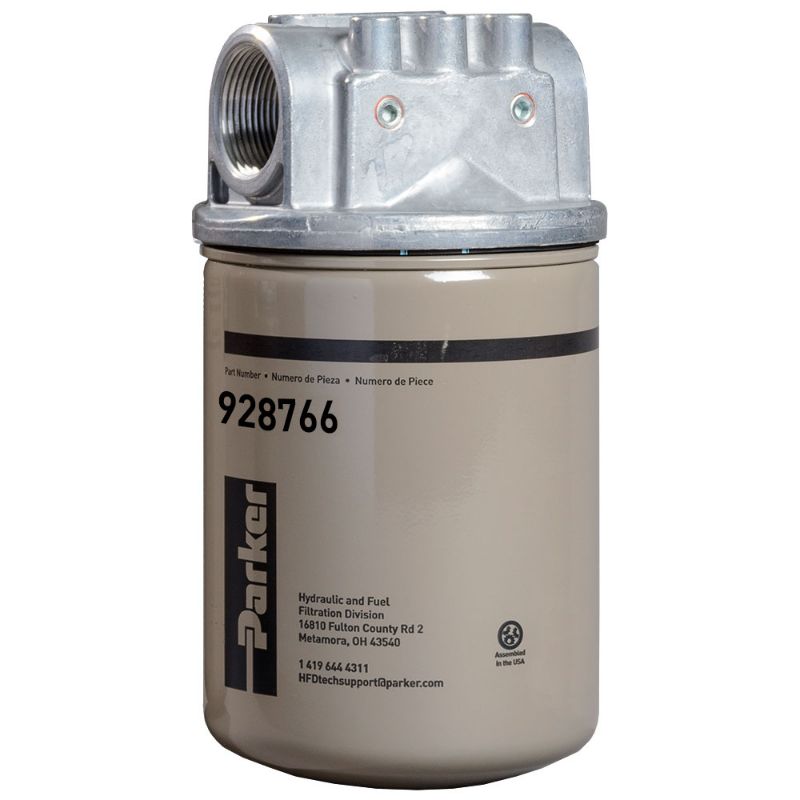

Parker 50AT110BBPGN20H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 50AT110BBPGN20H

$178.38/each

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Low Carbon Steel
Flow Rate	36	Port Type	1-1/4" NPT ports
Weight	1.77	Seal Material	Nitrile
Compatible Element	928766	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	10.3	Indicator Pressure Setting	1.4
Filter Element Type	10 micron microglass	Maximum Operating Temperature	225
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Indicator Type	Sold separately	Mounting Type	Inline
Bypass Valve Pressure Rating	1.7 bar	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron microglass
Indicator Type	Sold separately	Bypass Valve (psi)	25
Flow Rate (gpm)	36	Port Connection Type	1-1/4" NPT ports
