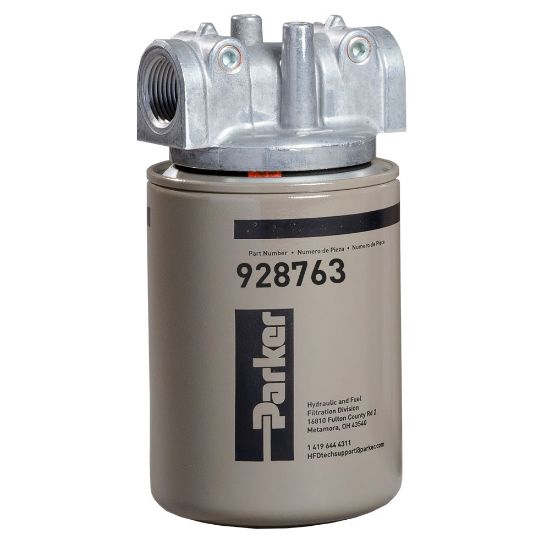

Parker 12AT110BBPCN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 12AT110BBPCN12H

$83.04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Inline
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature	107	Weight	1.6
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Flow Rate	9.5
Port Type	3/4" NPT ports	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Indicator Type	Sold separately	Pressure Rating	150
Housing Material	Low Carbon Steel	Compatible Element	928763
Filter Element Type	10 micron microglass	Indicator Pressure Setting	12
Bypass Valve Pressure Rating	15	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	10 micron microglass
Flow Rate (gpm)	9.5	Indicator Type	Sold separately
Bypass Valve (psi)	15	Port Connection Type	3/4" NPT ports
