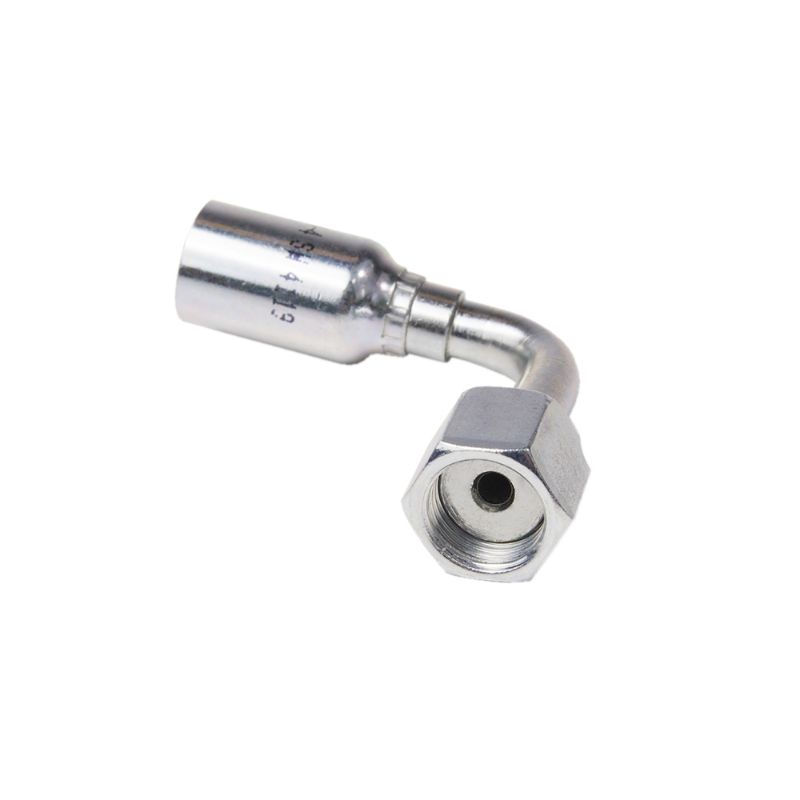

Parker 1J156-6-6 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Quote Required
Partner Available:	61 In Stock

Brand Parker

Part No. 1J156-6-6

$45.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	n/a
Configuration	Hose to Port	For Fluid Type	Oil
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Body Material	Steel	Application	Utility Equipment
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Hex Size 2	n/a
Connection 1 Size	3/8 inch Hose I.D.	Connection 2 Type	Female
Shape	Elbow 90° Long Drop	Connection 2 Size	11/16"-16 inch Thread
Hex Size 1	13/16 inch (see drawing legend J)	Fitting Length	62 mm (see drawing legend A)
Shipping Weight	0.203 lb	Connection Length	37 mm Cut-off allowance
Dimensional Weight	0.0592 lb	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Length (inch)	2.22"
Connection 2 Size	11/16"-16	Product Style	Female Seal-Lok - Swivel - 90° Elbow - Long Drop
