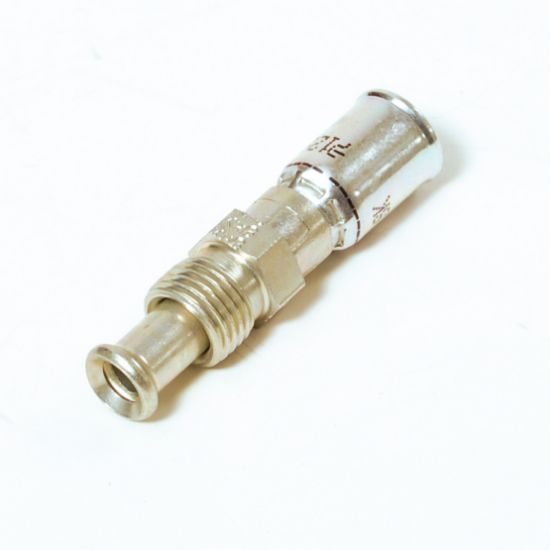

Parker 12891N-4-4 - Permanent Fittings for PTFE Hose - 91/91N

Name: Parker 12891N-4-4 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 12891N-4-4
Price: 30.57 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

AFP Availability:

5 In Stock

Grovetown, GA

Partner Available:

41 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 12891N-4-4

$30.57/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Product Series	91N	Industry	General Industrial
Configuration	Hose to Port	Dimensional Weight	0.0567 lb
Connection 2 Size	7/16"-24 inch Thread	Fitting Length	53 mm
Specifications Met	n/a	Hex Size 1	n/a
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Maximum Operating Pressure	3000 psi (Dependent on hose)	Hex Size	7/16 inch (see drawing legend J)
Connection 1 Size	3/16 inch Hose I.D.	Connection Length	1-1/2 inch Cut-off allowance (see drawing legend B)
Body Material	Steel	Connection 2 Type	Inverted
Shape	Straight	Product Type	Hose Fittings
Division	Parflex Division	Application	Instrumentation
Technology	Fluid & Gas Handling	For Fluid Type	Water
Division	Parflex Division	Coating	Chromium 6 Free-plated
Hose I.D. (inch)	0.188"	Length (inch)	2.09"
Product Style	Female NPSM Pipe - Swivel - Straight (60° Cone)	Connection 2 Size	7/16"-24
