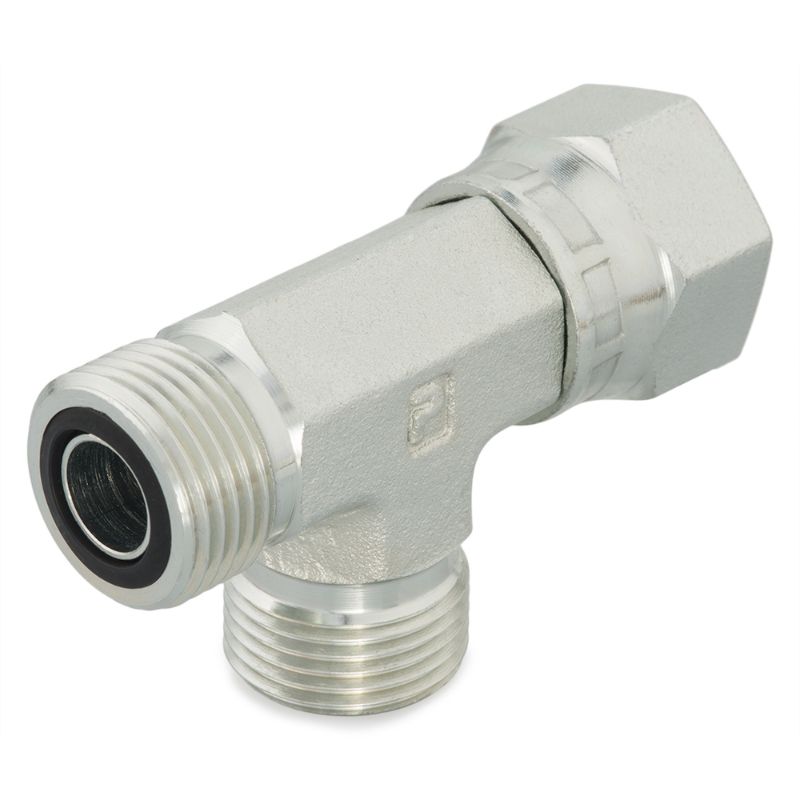

Parker 12 R6LO-SS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 12 R6LO-SS

$588.71

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Dimensional Weight	0.12464028776978417 lb	Maximum Dynamic Pressure	6000 psi
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 4 Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 4 Tube Outside Diameter	na	Connection 2 Type	Female O-Ring Face Seal Swivel
Shape	Tee	Connection 3 Type	Male O-Ring Face Seal
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	18, 20 mm
Connection 3 Tube Outside Diameter	3/4 inch
