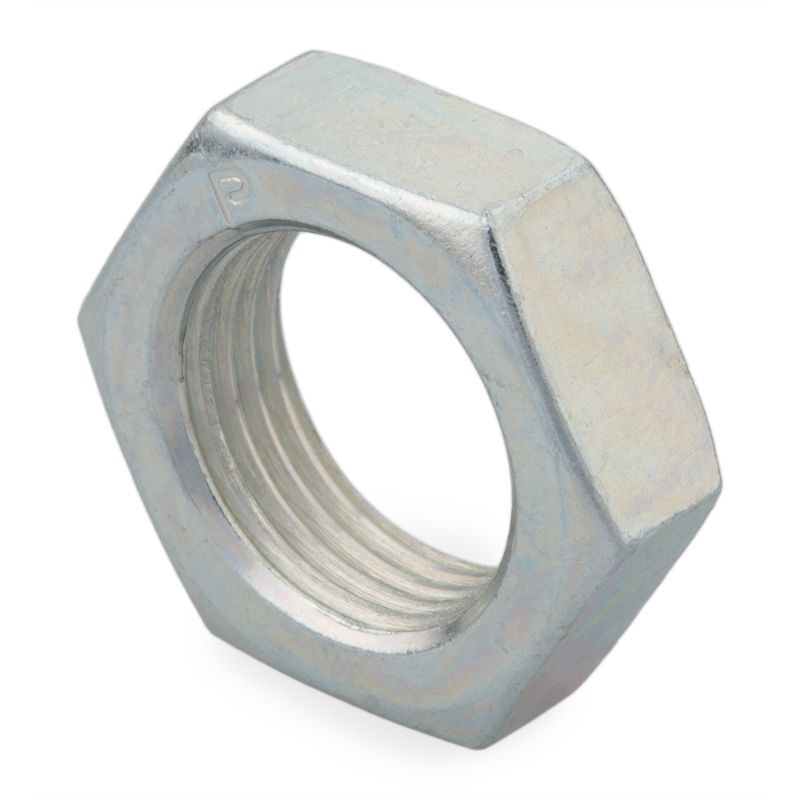

Parker 10 WLNL-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 WLNL-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 WLNL-S
Price: 7.88 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

139 In Stock

Richmond, VA	98
Grovetown, GA	18
Norfolk, VA	6
Richmond, VA	3 (Pickup only)
Jacksonville, FL	3
Johnson City, TN	3 (Pickup only)
Fayetteville, NC	2
Knoxville, TN	2
Knoxville, TN	2
Mooresville, NC	2

Partner Available:

433 In Stock

Brand Parker

Part No. 10 WLNL-S

$7.88/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Body Material	Steel	Maximum Dynamic Pressure	na
O-Ring Material	na	Specifications Met	SAE J1453
Connection Type	O-ring Face Seal	Connection 1 Type	Female O-Ring Face Seal
Connection 2 Type	na	Connection 3 Type	na
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Shape	Bulkhead Locknut
Dimensional Weight	0.015420694694244605 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
