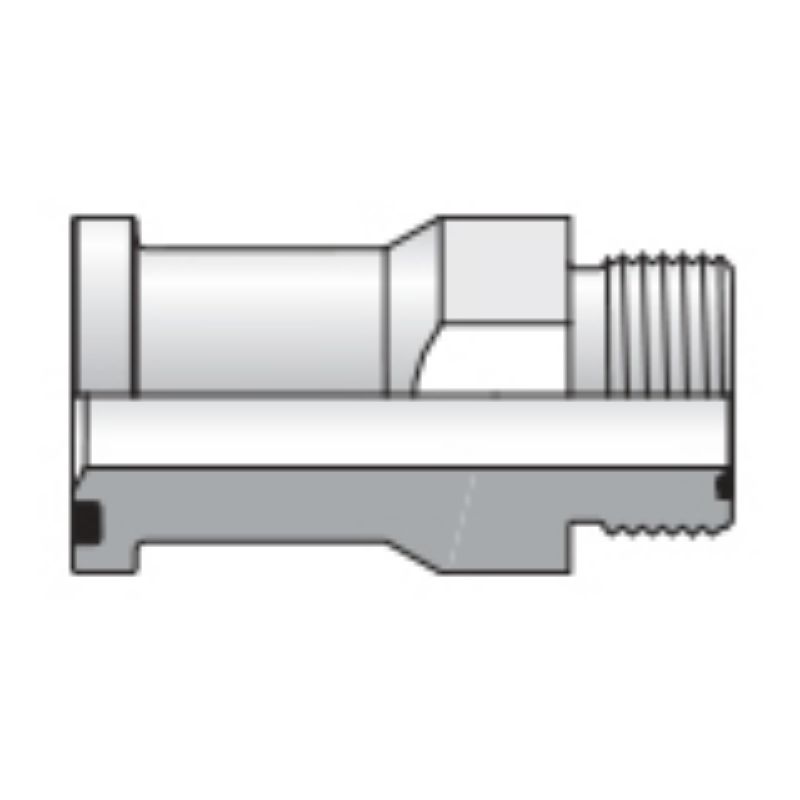

Parker 12 LOHQ1-S - O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters

Name: Parker 12 LOHQ1-S - O-ring Face Seal, 37° Flare and Flareless Code 61 and 62 Flange Adapters
SKU: 12 LOHQ1-S
Price: 78.98 USD
Availability: InStock

Parker's flange adapters with 4-bolt flange connections adapt to Parker's Seal-Lok™ O-ring Face Seal (ORFS), Triple-Lok® 37° flare, Ferulok® inch flareless fittings, and socket pipe weld, and have achieved world-wide acceptance.

AFP Availability:

1 Limited Stock

Summerville, SC

Partner Available:

11 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 12 LOHQ1-S

$78.98/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Dimensional Weight	0.12464028776978417 lb	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile	Maximum Dynamic Pressure	5000 psi
Specifications Met	ISO 6162-1, SAE J518	Shape	Straight
Body Material	Steel	Flange	Code 61
Flange Size (inch)	3/4	Connection Tube O.D. (inch)	3/4
Connection Style	O-ring Face Seal

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials

Industrial Tube Fittings, Adapters and Equipment - Cat. 4300 (PDF)
