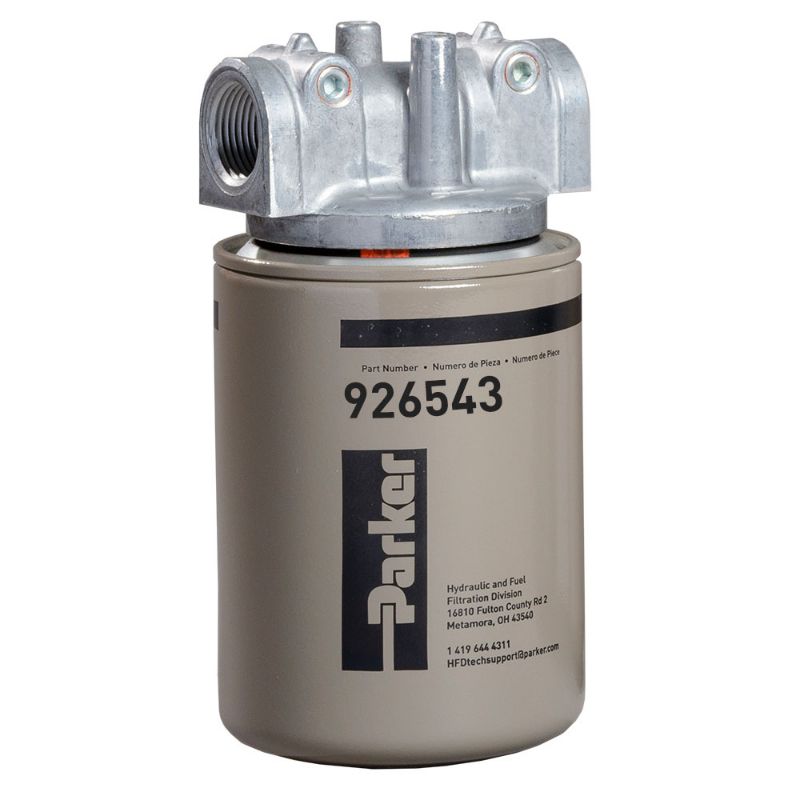

Parker 12AT103CBPGN12H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 12AT103CBPGN12H

$50.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Filter Element Type	Canister	Pressure Rating	10.3
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	225
Indicator Pressure Setting	1.4	Weight	1.6
Compatible Element	926543	Housing Material	Low Carbon Steel
Flow Rate	49	Bypass Valve Pressure Rating	1.7 bar
Seal Material	Nitrile	Port Type	3/4" NPT ports
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Mounting Type	Inline
Indicator Type	Sold separately	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	3 micron cellulose
Flow Rate (gpm)	13	Indicator Type	Sold separately
Bypass Valve (psi)	25	Port Connection Type	3/4" NPT ports
