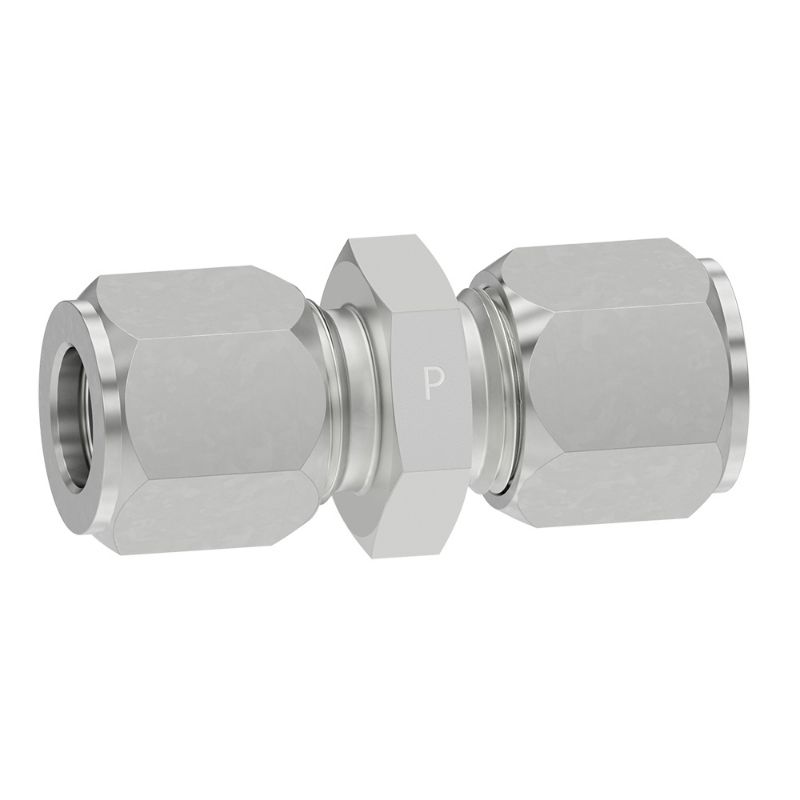

Parker 12 HBU-S - Ferulok 24° Flareless Fittings

Name: Parker 12 HBU-S - Ferulok 24° Flareless Fittings
SKU: 12 HBU-S
Price: 33.14 USD
Availability: InStock

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

AFP Availability:

40 In Stock

Jacksonville, FL	14
North Chesterfield, VA	8
Richmond, VA	4 (Pickup only)
Johnson City, TN	3 (Pickup only)
Summerville, SC	3
Norfolk, VA	2
West Knoxville, TN	2
East Knoxville, TN	2
Ashland, VA	1 (Pickup only)
Fayetteville, NC	1

Partner Available:

341 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 12 HBU-S

$33.14/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Dynamic Pressure	4500 psi
Specifications Met	SAE J514	Connection 4 Size	na
Connection 4 Tube Outside Diameter	na	Body Material	Steel
Dimensional Weight	0.11236510791366906 lb	Connection Type	Flareless Bite Type
Division	Tube Fittings Division	Shape	Straight
Body Material	Steel	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Connection Style	Tube to Tube	Connection 1 Style	Male Flareless Bite Type
Connection 2 Style	Male Flareless Bite Type	O-ring	na
Connection 3 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	3/4
Connection 2 Tube O.D. (inch)	3/4

Product resources

Literature and Reference Materials
