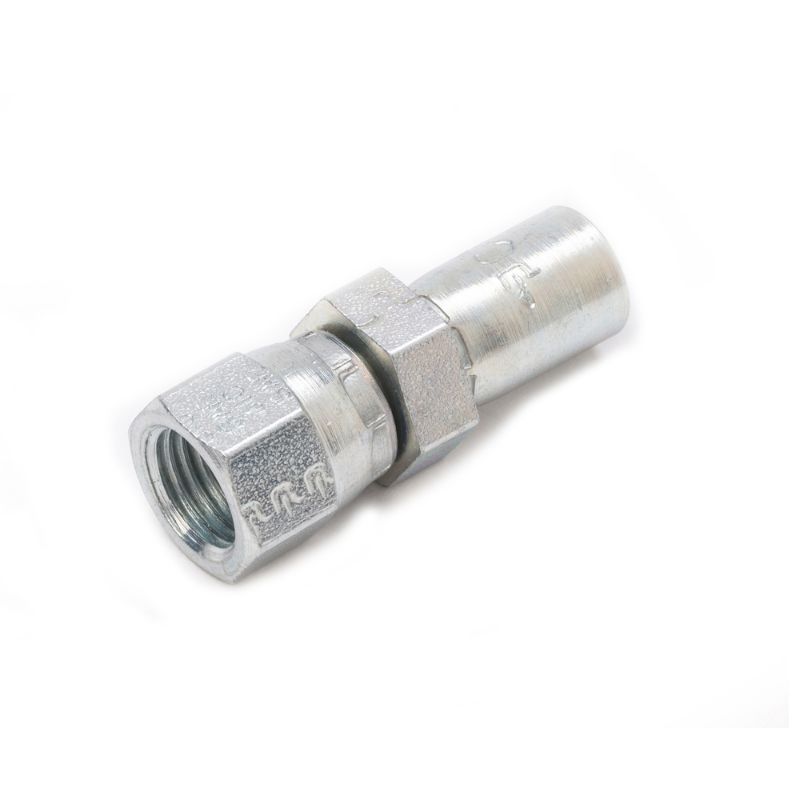

Parker 106CY-4-3 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

AFP Availability:	Quote Required
Partner Available:	42 In Stock

Brand Parker

Part No. 106CY-4-3

$13.42/each

Products specifications

Attribute name	Attribute value
Brand	Parker	Industry	Industrial Manufacturing Equipment
Configuration	Hose to Port	Connection 2 Size	Flare 7/16"-20 inch Thread
For Fluid Type	Hydraulic Fluids	Fitting Length	50.29 mm
Specifications Met	n/a	Hex Size 1	n/a
Connection 1 Type	Hose	Maximum Operating Pressure	41.4 MPa
Hex Size	n/a	Connection Length	1-1/8 inch Cut-off allowance
Body Material	Steel	Connection 2 Type	37° Flare Swivel
Shape	Straight SAE	Product Type	Hose Fittings
Division	Parflex Division	Application	Industrial Hydraulics
Technology	Fluid & Gas Handling	Division	Parflex Division
Connection 1 Size	3/16 inch Hose I.D.	Coating	Chromium 6 Free-plated
Length (inch)	1.98"	Product Style	Female JIC 37° - Swivel - Straight
Hose I.D. (inch)	0.188"	Connection 2 Size	Flare 7/16"-20
Shape	Straight	Body Material	Steel
Notes	-4 Incorporates A Dual Seat
