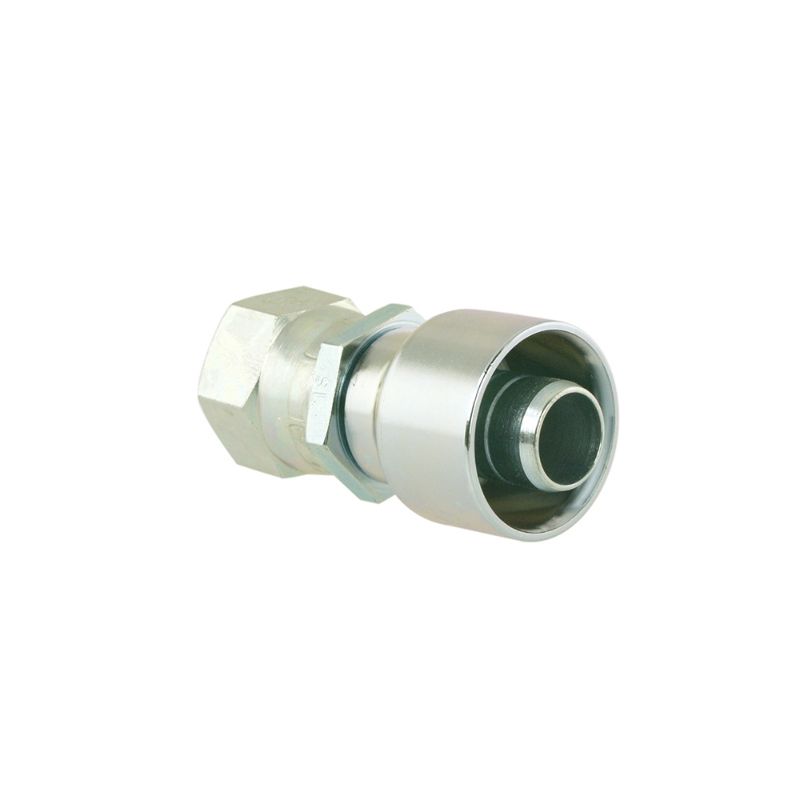

Parker 10693N-6-6 - Permanent Fittings for 939/939B PTFE Hose – 93N Series

Parker's 93N Series fittings are used on PTFE 939/939B hoses from Parflex division.

Availability:	Quote Required
Partner Available:	71 In Stock

Brand Parker

Part No. 10693N-6-6

$106.80

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size	3/4 inch (see drawing legend H)
Industry	Chemicals Processing	Hex Size 1	11/16 inch (see drawing legend J)
Technology	Fluid & Gas Handling	Application	Instrumentation
Product Type	Hose Fittings	Body Material	Steel
Configuration	Hose to Port	Fitting Length	1.70 inch (see drawing legend A)
For Fluid Type	Gases	Product Series	93N
Connection 1 Size	3/4 inch Hose I.D.	Connection 1 Type	Hose
Connection 2 Size	9/16"-18 inch Thread	Connection 2 Type	JIC 37°
Connection Length	29 mm	Specifications Met	N/A
Division	Parflex Division	Maximum Operating Pressure	10.3 MPa
Length (inch)	1.70"	Product Style	Female JIC 37° Swivel
Hose I.D. (inch)	0.375"	Connection 2 Size	9/16"-18
