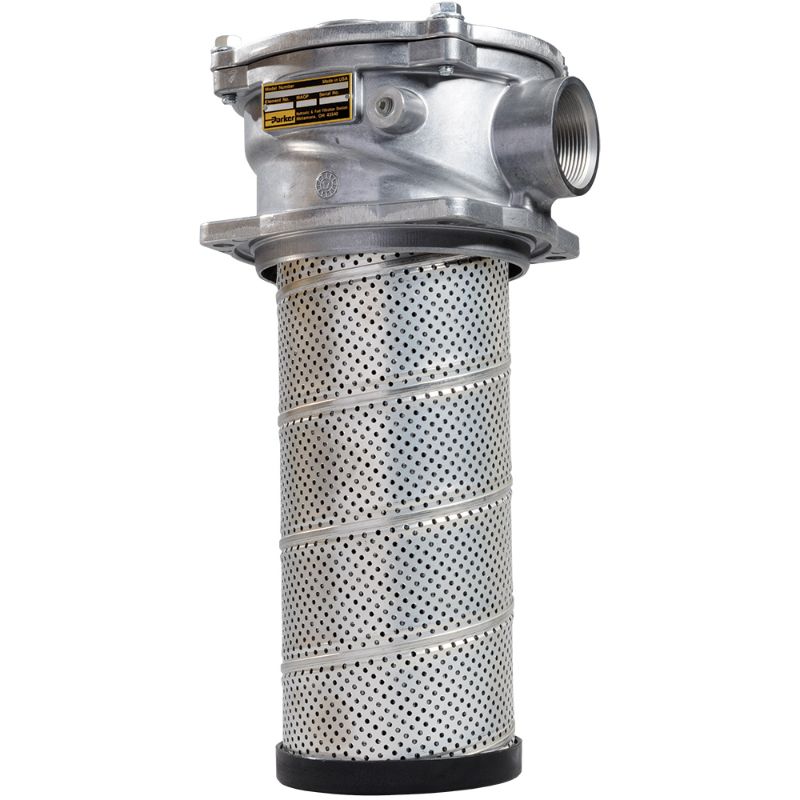

Parker GLF3110QBPIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3110QBPIS241

$405.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	10 bar	Indicator Type	Port Plugged
Options	None	Filter Element Type	10Q Microglass
Maximum Operating Temperature	107 °C	Indicator Pressure Setting	1.9 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Bypass Valve Pressure Rating	35 psi
Mounting Type	Tank Mounted	Seal Material	Nitrile
Weight	3.18 kg	Compatible Element	945896Q
Port Type	SAE-24	Housing Material	Cast Aluminum Alloy
Flow Rate	150 Gal/min	Seal Material	Nitrile
Options	None	Filter Element	10Q Microglass
Indicator Type	Port plugged	Port Connection Type	SAE-24
Flow Rate (gpm)	150	Bypass Valve (psi)	35
