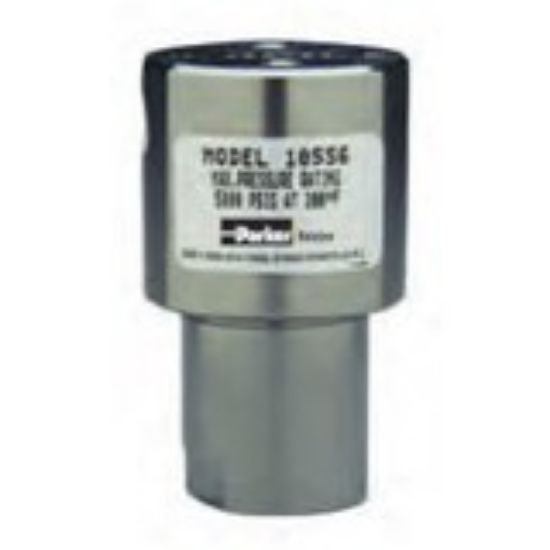

Parker 105S6-1/4 - Sample Filters

Parker Balston gas and liquid sample filters protect sensitive analyzers from sample impurities.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 105S6-1/4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Materials of Construction	Stainless Steel	Port Size	1/4 inch
Maximum Operating Temperature	204 °C	Width	1.8 inch
Brand	Balston	Weight	0.4 kg
Drain Port Size	1/4 inch	Height	83.5 mm
Volume	16 cm3	Flow Rate	12 ft3/min
Filter Type	Low Volume Bypass or Slipstream Filter	Micron Rating	Various depending on media selected.
Compatible Element	050-07-?? (Dependent on Filter Media Grade)	Filter Efficiency Rating	Dependent on Media Selection
Maximum Operating Pressure	344.7 barg	Materials of Construction	Stainless Steel
Port Connection (inch)	1/4	Filter Type	Low Volume Bypass or Slipstream Filter
Flow Rate (CFM)	12	Filtration Efficiency	Dependent on media selection
Maximum Operating Pressure (psig)	5000

Product resources

Literature and Reference Materials
