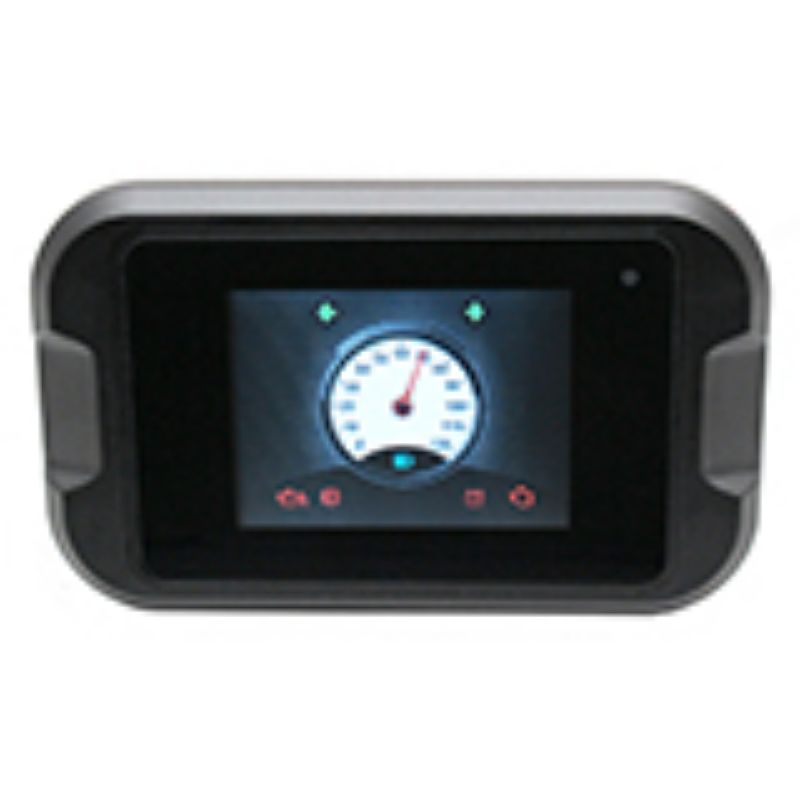

Parker 1040002ECD - PHD - Parker Programmable Electronic Display

Parker's PHD display family are rugged, general purpose displays offering full color, touch capable screen with built in CAN and I/O. The PHD displays offer a robust design to withstand the conditions found on today’s mobile, off-road equipment.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1040002ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Minimum Operating Temperature	-20 °C
Housing Material	Plastic	Electrical Connection	Molex MX150
Number of Outputs	2	Maximum Operating Temperature	70 °C
Resolution	320x240 pixels (max)	Display Type	2.8" Color with PCAP Touchscreen
Number of Inputs	7	Power Supply Voltage	9 to 32 VDC
Communication Interface	USB	Ingress Protection Rating	IP69K
Model Number	PHD28
