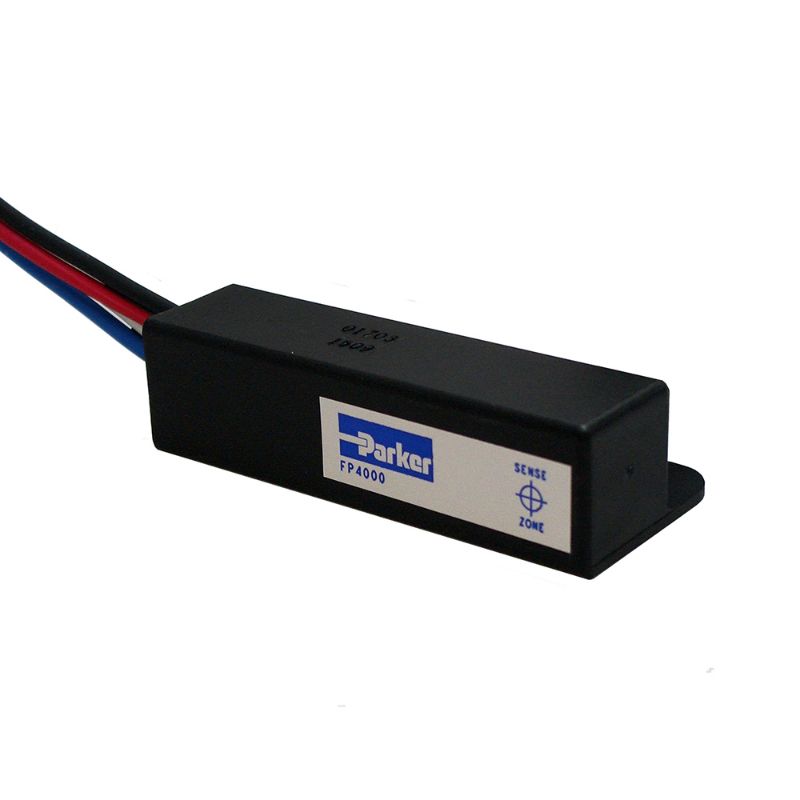

Parker 01703ECD - Ferrous Proximity Sensor - FP

Parker's Ferrous Proximity Sensors use back-biased reed switch technology non-contacting technology to detect the presence of ferrous targets. Because they are non-contacting with no moving external components they are well suited for many applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01703ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Release Air Gap	7.2	Electrical Connection	DTM04-4P
Division	Electronic Motion and Controls Division	Contact Rating	45
Sensor Type	Proximity	Maximum Switching Voltage	12
Sense Air Gap	6.4	Model Number	FP4000
Maximum Switching Current	5	Ingress Protection Rating	67
Housing Material	Glass-filled Nylon	Mounting Hole Diameter	6.4 mm (x3)
Sensing Surface	Site A	Sense Air Gap Min (mm)	6.4
Switch Type	NO and NC
