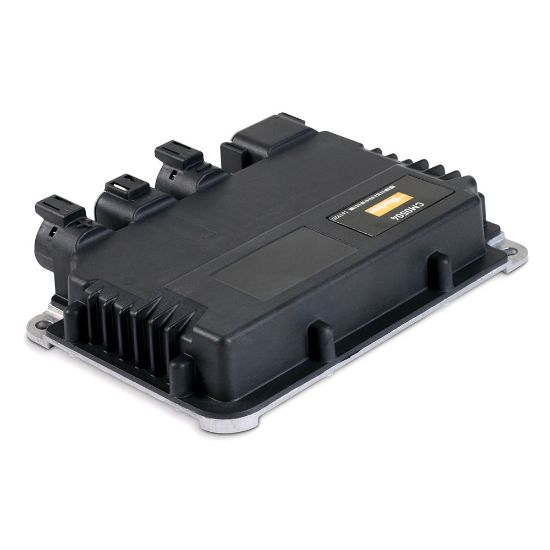

Parker 1038003ECD - High Current Controller Module - CM0504

The CM0504 Slave Control Module includes a single CAN interface, 5 inputs and 4 outputs with error checking. The main function of the module is to provide a means of controlling high current loads through messages on the CAN bus.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1038003ECD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Industry	Agriculture
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	85 °C
Number of Outputs	4	Power Supply Voltage	24 V
Software	Preconfigured	Specifications Met	E-mark
Model Number	CM0504	Controller Type	Slave Module
Housing Material	Plastic Housing with Aluminum Base	Number of Inputs	5
Electrical Connection	Deutsch DTP	Output Current Rating	25 A
Communication Interface	1x CAN 2.0B (J1939)	Ingress Protection Rating	IP67
