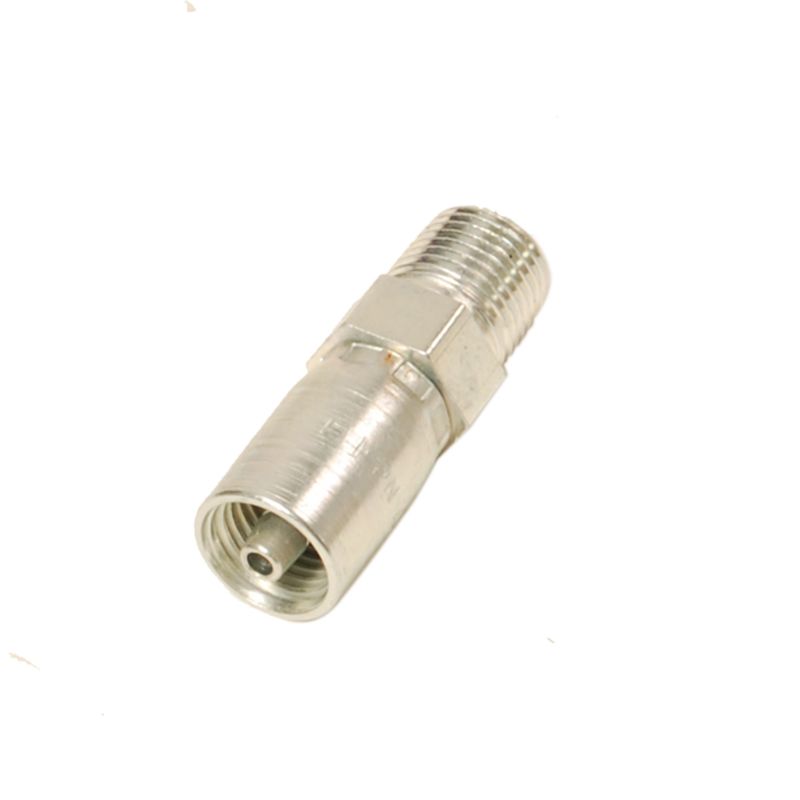

Parker 101CY-4-3 - Permanent Fittings for Parflex Hose – CY Series

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 101CY-4-3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Division	Parflex Division	Hex Size 1	n/a
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Type	Hose	Body Material	Steel
Application	Construction Equipment	Connection 2 Size	1/4"-18 inch Thread
Connection Length	1-1/8 inch Cut-off allowance	Hex Size	0.5625 inch (see drawing legend H)
Fitting Length	49 mm	For Fluid Type	Pneumatic Media
Connection 1 Size	3/16 inch Hose I.D.	Maximum Operating Pressure	414 bar
Shape	Straight	Body Material	Steel
Product Style	Male NPTF Pipe - Rigid - Straight	Connection 2 Size	1/4"-18
Hose I.D. (inch)	0.1875"	Length (inch)	1.97"
