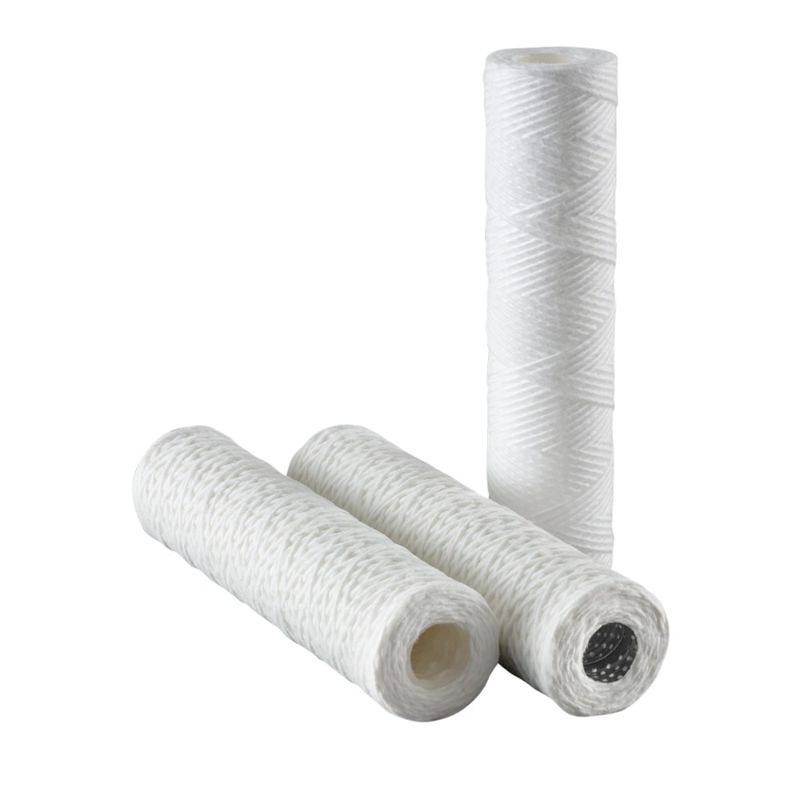

Parker 101185 - HONEYCOMB™ HFT Wound Depth Liquid Filter Cartridge

Honeycomb™ wound depth filter cartridges remove contaminants from a wide range of liquid applications. Parker strings are known for superior quality and performance. Available from 0.5 to 150 micron ratings with a variety of string materials.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 101185

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Industrial Process Filtration Division
Brand	Parker	Product Type	Filter Cartridge
Division	Industrial Process Filtration Division	Technology	Filtration
Application	Liquid Particulate Filtration	Flow Direction	Outside-to-inside
Quantity per Box	15	Product Series	HFT
Filter Construction	Wound String	Nominal Inside Diameter	1"
Maximum Pressure Differential	60 PSID	Changeout Pressure Differential	30 PSID
Micron Rating	10	End Cap Material	N/A
Industry	Oil & Gas and Industrial	Packaging	Standard
Core Material	304 Stainless Steel	Seal Material	N/A
Filter Material	Cotton (FDA)	Cartridge Length	40.1875"
Core Cover Material	N/A	End Cap Configuration	DOE - w/ Extended Core
Nominal Outside Diameter	2.4375"	Maximum Operating Temperature	250 F
Model Number	ELMT 19R40GXC

Product resources

Literature and Reference Materials

HONEYCOMB™ HFT Wound Depth Liquid Filter Cartridge (PDF)
