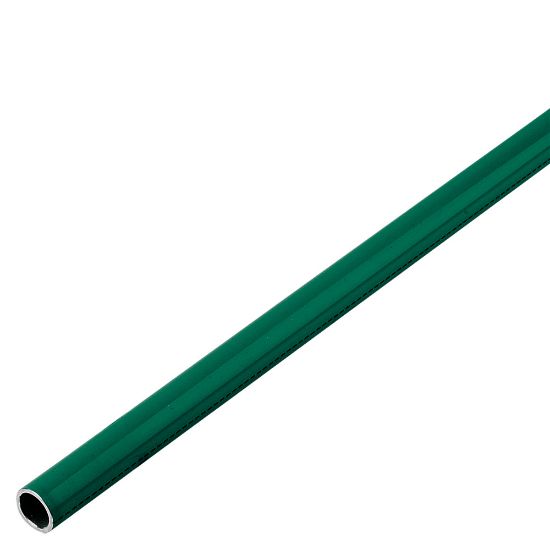

Parker 1004A17 02 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1004A17 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Shape	Straight
Minimum Operating Temperature	-4 °F	Industry	General Industrial
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Color	Green	Length	4,5 m
Weight	0,990 kg	Technology	Pneumatics
Product Type	Rigid Aluminum Pipe	Assembly Time	0.05 Hours
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
Outside Diameter	16.5 mm	Specifications Met	EN 755.8
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Size	16.5 mm
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Length (m)	4,5	Length (ft)	15
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Color	Green
