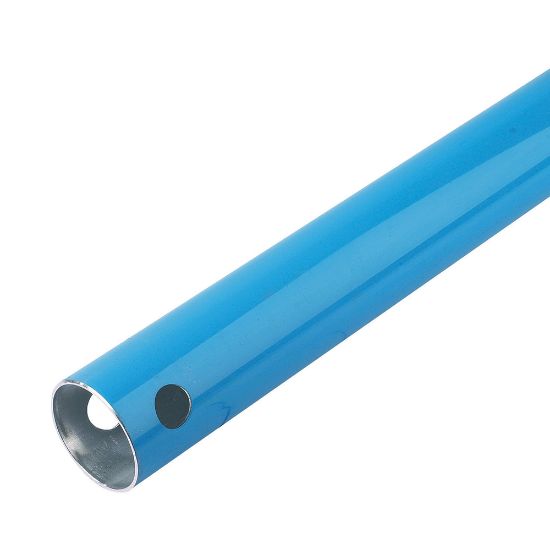

Parker 1003A50 04 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1003A50 04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Shape	Straight	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Division	Low Pressure Connectors Europe Division
Application	Compressed Air	Color	Blue
Length	10 ft	Weight	2,142 kg
Product Type	Rigid Aluminum Pipe	Assembly Time	0.05 Hours
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
Outside Diameter	50 mm	Quantity per Box	5
Specifications Met	EN 573.3	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Size	50.8 mm
For Fluid Type	Air	Connection 1 Type	Pipe
Length (m)	3	Length (ft)	10
Pipe O.D. (mm)	50.8	Pipe O.D. (inch)	2
Color	Blue
