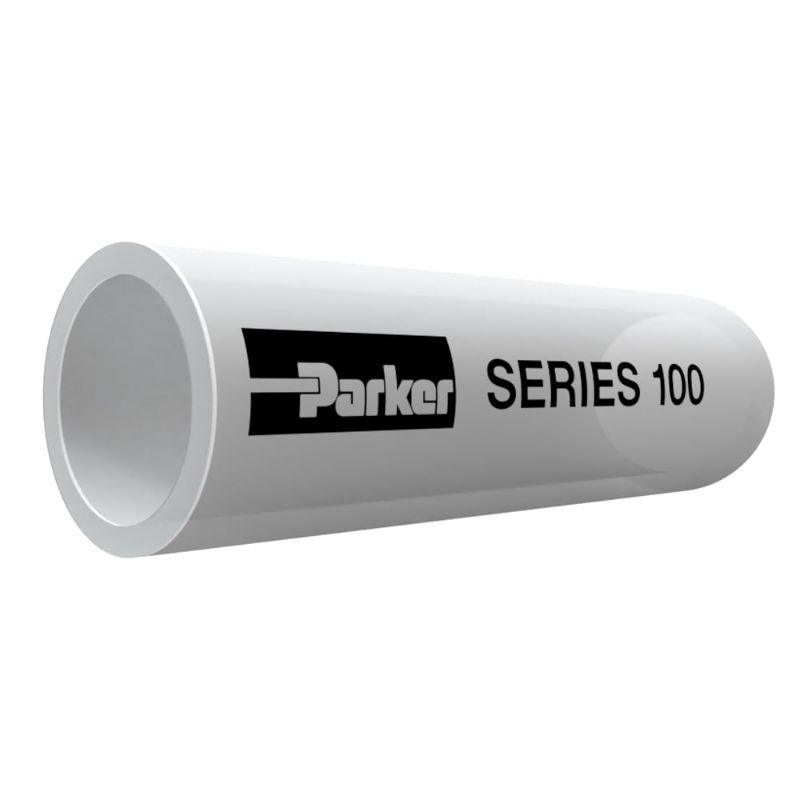

Parker 100-06080102 - NEXCLEAR® PVC Clear General Service Tubing, Series 100

Nexclear PVC Clear General Service Tubing is designed for transfer of abrasives, air, beverages, food particulates, sanitary products and potable water in applications to 150°F and 65 psi, Series 100

AFP Availability:	Quote Required
Partner Available:	280 In Stock

Brand Parker

Part No. 100-06080102

$0.50/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	25 °F
Hose Inner Tube Material	PVC	Package Type	Coil
Tube Outside Diameter	1/2 inch	Specifications Met	NSF 51 (certified to 180°F / 82°C)
Length per Package	100 ft	Application	PVC General Purpose Tubing
Tube Inside Diameter	9.5 mm	Vacuum Pressure Rating	Light
Weight	0.04 lb	Maximum Operating Pressure	45 psi
Color	Clear	Maximum Operating Temperature	150 °F
Media	Water (Potable Water)	Division	Hose Products Division
Durometer	75 Shore A	Tube I.D. (inch)	3/8
Tube O.D. (inch)	1/2	Maximum Working Pressure (psi)	45
