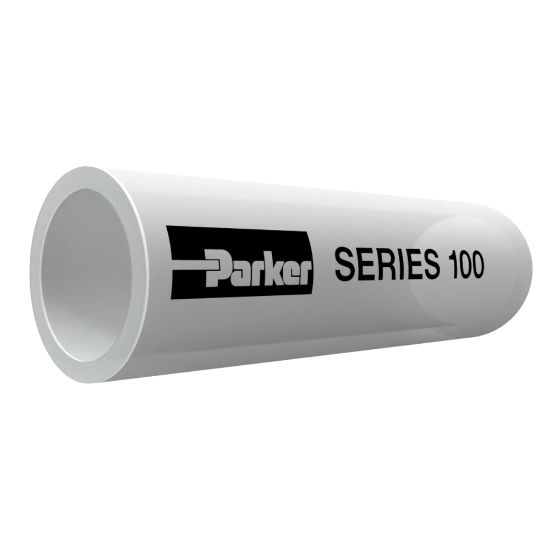

Parker 100-03050102 - NEXCLEAR® PVC Clear General Service Tubing, Series 100

Nexclear PVC Clear General Service Tubing is designed for transfer of abrasives, air, beverages, food particulates, sanitary products and potable water in applications to 150°F and 65 psi, Series 100

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 100-03050102

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Specifications Met	EU Res AP (89)
Color	Clear	Media	Water (Pure Water)
Weight	0.01 kg	Durometer	75 Shore A
Application	PVC General Purpose Tubing	Package Type	Coil
Length per Package	100 ft	Tube Inside Diameter	4.8 mm
Tube Outside Diameter	7.9 mm	Vacuum Pressure Rating	Light
Hose Inner Tube Material	Clear	Maximum Operating Pressure	3.8 bar
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	25 °F
Tube I.D. (inch)	3/16	Tube O.D. (inch)	5/16
Maximum Working Pressure (psi)	55
